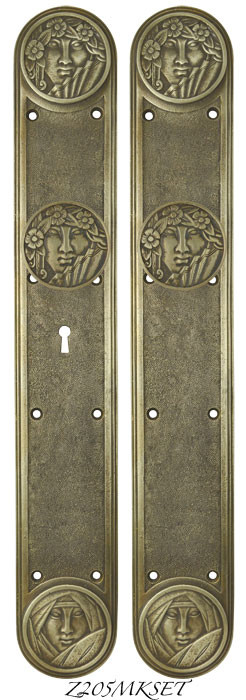

Z205MKSET-DK1  Antique Brass Finish Door Set with 2 ¼" Backset Mortise Lock {PICTURED}
Z205MKSET-DK2  Antique Brass Finish Door Set with 2 ⁵⁄₈" Backset Mortise Lock {PICTURED}

Z205MKSET-OB1  Oil Rubbed Bronze Finish Door Set with 2 ¼" Backset Mortise Lock
Z205MKSET-OB2  Oil Rubbed Bronze Finish Door Set with 2 ⁵⁄₈" Backset Mortise Lock

Z205MKSET-2T1  Two-Tone Black & Brass Finish Door Set with 2 ¼" Backset Mortise Lock
Z205MKSET-2T2  Two-Tone Black & Brass Finish Door Set with 2 ⁵⁄₈" Backset Mortise Lock

More a work of art than simple doorknobs and backplates.  The antique original is marked "Russwin" (formerly R&E), the famous Russell & Erwin manufacturers.  We assume that the originals were custom made, not a stock item.  The Morris influence is strong in this design.

This Interior Mortise Passage set locks from one side only using a skeleton key.

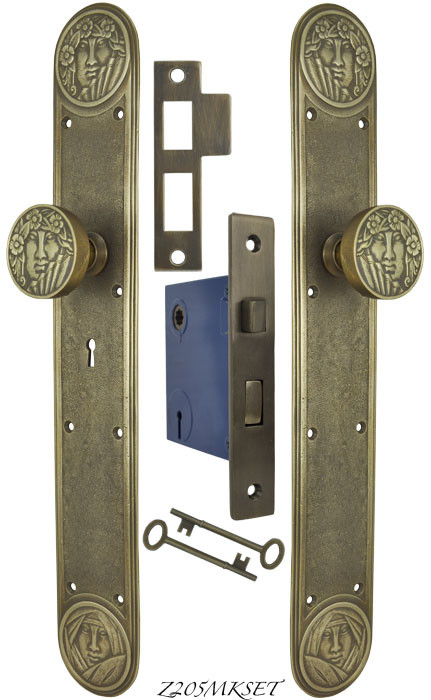

Each Set Includes:

• 1 Doorplate with Knob & Keyhole Function
• 1 Doorplate with Knob Only Function
• 2 Doorknobs with the Connecting Spindle
• 1 Mortise Lock with 2 Skeleton Keys (choice of 2 ¼" or 2 ⁵⁄₈" backset)

Measurements:

• Door Plates:  2 ⁵⁄₈" wide by 17 ³⁄₈" long.
• Doorknobs:  2 ¼" diameter; each projects 1 ¾".
• Mortise Locks:
  • 2 ¼" Backset Lock:
    • Lock Body:  3 ¾" tall x 2 ⁷⁄₈" deep x ⁵⁄₈" thick.
    • Faceplate:  1" wide x 6" tall; ³⁄₁₆" thick.
    • Strike Plate:  4 ½" tall x 1" wide (plus tongue).
    • Distance from the center of the doorknob receiver to the center of the round keyhole bit is 2 ¼".
  • 2 ⁵⁄₈" Backset Lock:
    • Lock Body:  3 ¾" tall x 3 ³⁄₁₆" deep, and ⁵⁄₈" thick.
    • Faceplate:  1" wide x 6" tall; ³⁄₁₆" thick.
    • Strike Plate:  4 ½" tall x 1" wide (plus tongue).
    • Distance from the center of the doorknob receiver to the center of the round keyhole bit is 2 ¼".

Mounting screws are included for each piece of hardware in this set.

A similar passage door set is also available with a 2 ³⁄₈ Backset Tubular Latch.
