Classic 7" Tall Wrought Plates Tubular Door Set
with Choice of Doorknobs
& Locking Privacy Turnlatch - 2 3⁄8" Backset
L80PTSET1 Clear Glass Knobs & 7" Door Plates Passage/Locking Turnlatch Set
L80PTSET2 Blue Glass Knobs & 7" Door Plates Passage/Locking Turnlatch Set
L80PTSET3 Green Glass Knobs & 7" Door Plates Passage/Locking Turnlatch Set
L80PTSET4 White Glass Knobs & 7" Door Plates Passage/Locking Turnlatch Set
L80PTSET5 Round Brass Knobs & 7" Door Plates Passage/Locking Turnlatch Set
L80PTSET6 Oval Brass Knobs & 7" Door Plates Passage/Locking Turnlatch Set

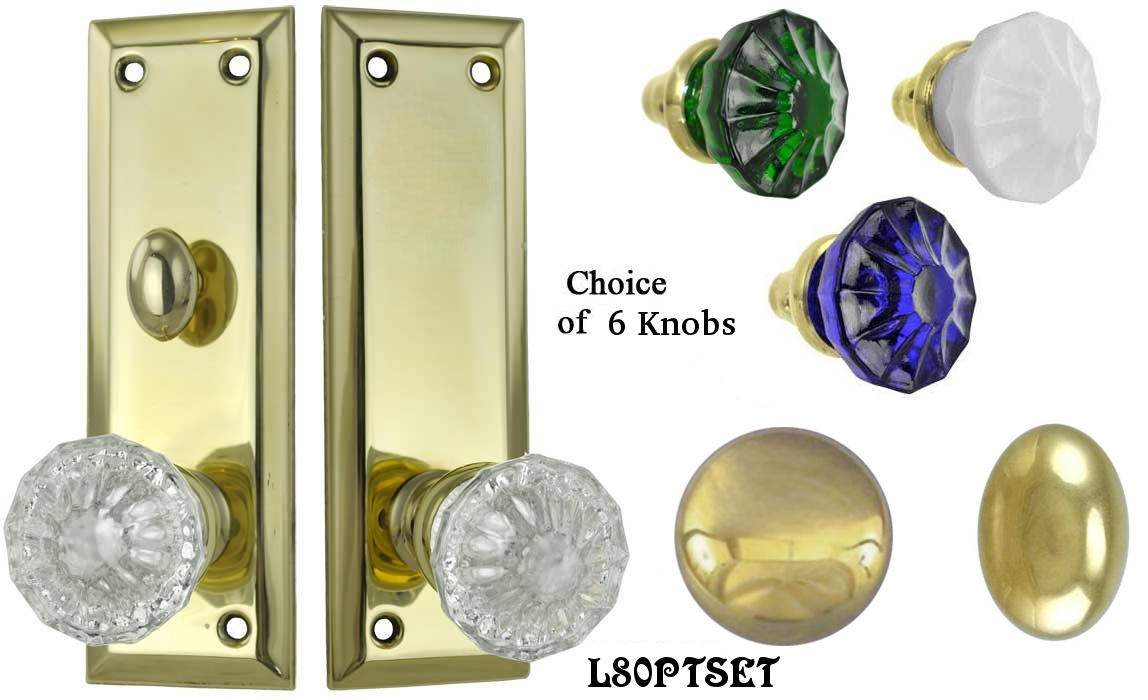

Classic 7" tall wrought brass doorplate set, matched with a pair of classic glass or brass doorknobs. Six choices of doorknobs and three finishes to choose from!
This set is an interior privacy set that locks from one side using a turnlatch. Ideal for those who don't want to mortise out a door for a full mortise box. Instead, this set comes with a tubular passage latch and a tubular deadbolt.
This complete door set is available in our polished unlacquered brass {Pictured}, hand-finished Antique Brass Finish, or our silver tone Nickel Plated finish.

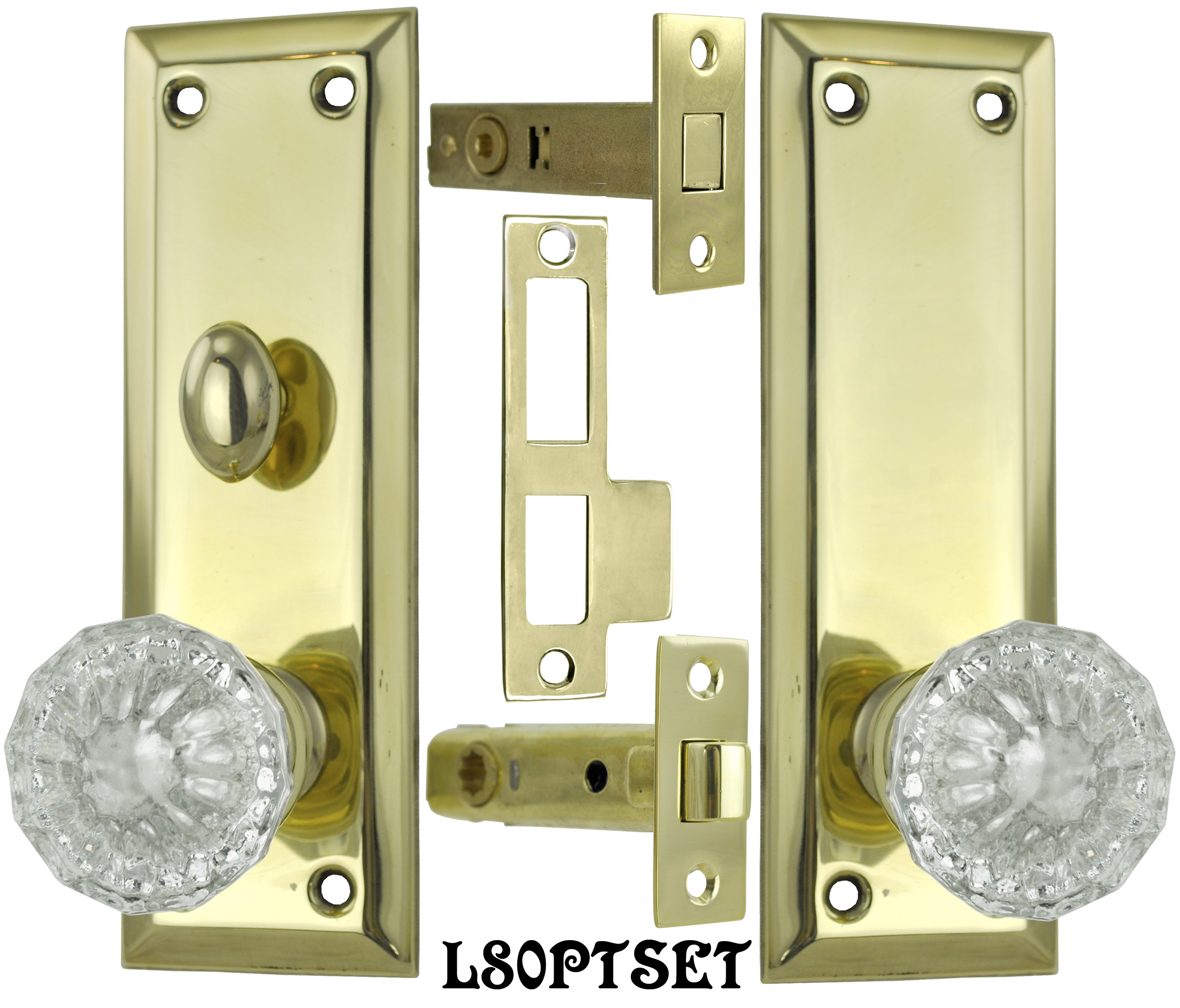

The Set Includes:
-
One Door Plate with Lower Knob Only Function
-
One Door Plate with Knob and Turnlatch Function
-
Two Doorknobs with the Connecting Spindle
-
One Tubular Passage Latch
-
One Tubular Deadbolt Latch
-
One Catchplate for Both Deadbolt and Passage Latch
Measurements:
-
Door Plates: 2 ¼" wide x 7" tall.
-
Doorknobs:
-
Glass Doorknobs: 2" diameter; each projects 2 3⁄8".
-
Round Brass Doorknobs: 2 ¼" diameter; each projects 2 ¼".
-
Oval Brass Doorknobs: 2 3⁄8" tall by 1 9⁄16" wide; each projects 2 3⁄8".
-
Passage Latch:
-
Face Plate: 1" wide x 2 ¼" tall.
-
Backset: 2 3⁄8"
-
Latch can be installed by drilling a 7/8" hole, then recessing the wood for the latch face.
-
Tubular Deadbolt:
-
Face Plate: 1 1⁄16" wide x 2 ¼" tall.
-
Case Length: 3 ¼" overall.
-
Backset: 2 3⁄8"
-
Catchplate: 4 ½" tall x 1" wide (minus tongue).
Mounting screws are included with all pieces of hardware in this set.
