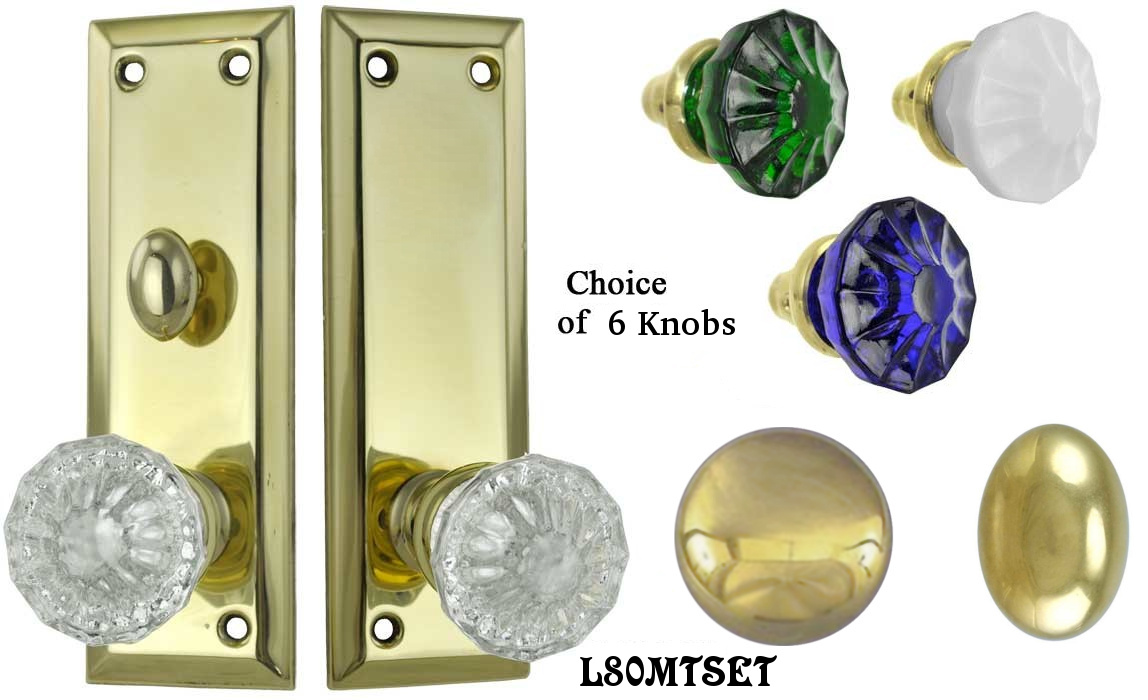

L80MTSET1  Clear Glass Doorknobs Option Mortise Turnlatch Lock Door Set

L80MTSET2  Blue Glass Doorknobs Option Mortise Turnlatch Lock Door Set

L80MTSET3  Green Glass Doorknobs Option Mortise Turnlatch Lock Door Set

L80MTSET4  White Glass Doorknobs Option Mortise Turnlatch Lock Door Set

L80MTSET5  Solid Brass Round Doorknobs Option Mortise Turnlatch Lock Door Set

L80MTSET6  Solid Brass Oval Doorknobs Option Mortise Turnlatch Lock Door Set

This complete door set is available in Polished Unlacquered Brass (which will develop a natural patina over time, just like the original Victorian hardware), our hand-finished, mellow brown, Antique Brass Finish, or in silvery Nickel Plated.

This interior mortise privacy set locks from one side only using a turnlatch.

Set includes a choice of 2 ¼ backset, or 2 ⁵⁄₈" backset mortise locks.

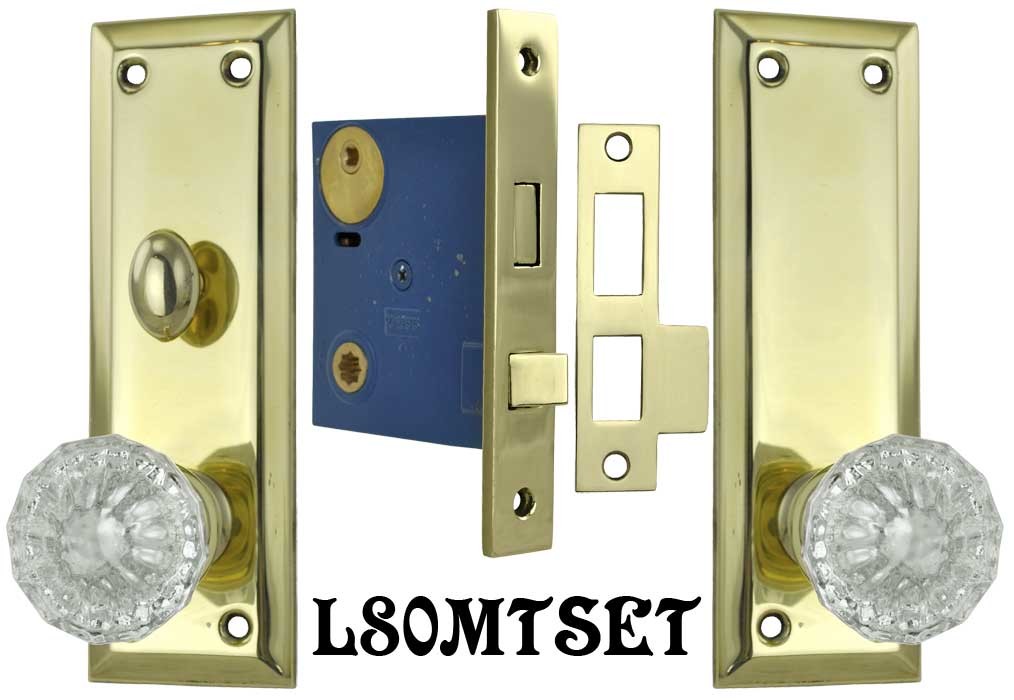

The Complete Set Includes:

• One Door Plate with Doorknob & Turnlatch Function
• One Door Plate with Lower Doorknob Only Function
• Two Doorknobs with the Connecting Spindle
• One Mortise Lock with Turnlatch Function (choice of 2 ¼" or 2 ⁵⁄₈" backset)

Measurements:

• Door Plates:  2 ¼" wide by 7" tall.
• Doorknobs:
  • Glass Doorknobs:  2" diameter; projects 2 ³⁄₈".
  • Round Brass Doorknobs:  2 ¼" diameter; projects 2 ¼".
  • Oval Brass Doorknobs:  2 ³⁄₈" tall by 1 ⁹⁄₁₆" wide, and projects 2 ³⁄₈".
• Mortise Locks:
  • 2 ¼" Backset Lock:
    • Lock Body:  3 ¾" tall x 2 ⁷⁄₈" deep x ⁵⁄₈" thick.
    • Faceplate:  1" wide x 6" tall; ³⁄₁₆" thick.
    • Strike Plate:  4 ½" tall x 1" wide (plus tongue).
    • Distance from the center of the turnlatch receiver to the center of the doorknob spindle hub is 2 ½".
  • 2 ⁵⁄₈" Backset Lock:
    • Lock Body:  3 ¾" tall x 3 ³⁄₁₆" deep, and ⁵⁄₈" thick.
    • Faceplate:  1" wide x 6" tall; ³⁄₁₆" thick.
    • Strike Plate:  4 ½" tall x 1" wide (plus tongue).
    • Distance from the center of the turnlatch receiver to the center of the doorknob spindle hub is 2 ½".

Mounting screws for all hardware will be supplied.
