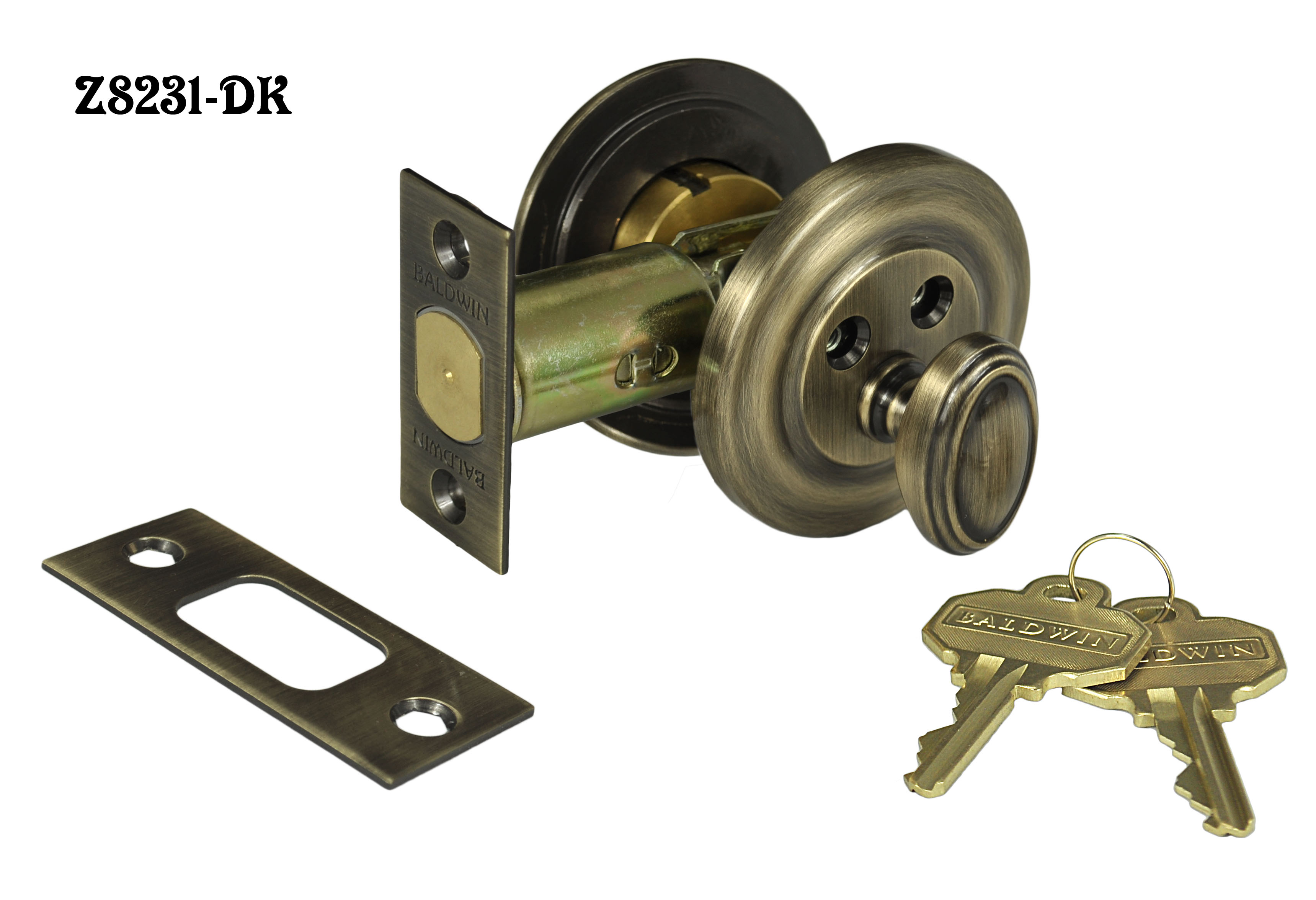

Z8231-DK Antique Brass Finish Baldwin Deadbolt Cylinder Lock 2 1/2" Diameter
Vintage Hardware & Lighting has partnered with Baldwin Hardware to bring you the finest contemporary deadbolts available.
The case is formed of heavy gauge steel for strength, and assures solid fit in door preparations. Most interior parts are solid brass for smooth operation and maximum strength. It can be used in left or right hand applications, as the non-handed design facilitates specifications and installation.
There is a matching strike, specially designed of high grade steel for maximum durability. The cylinder housing is protected with a free-turning exterior cylinder guard fabricated of solid brass to resist gripping or twisting.
Measurements:
-
Deadbolt
-
Steel case, measuring .96" by 3.32" in length (3.75" extended).
-
Face: 1" x 2 ¼", with a thickness of .156".
-
Backset: 2 3⁄8" or 2 ¾" backset.
-
Adjustable with just one half turn (180°) of the case.
-
Bolt Throw: 1"
-
Exterior Cylinder
-
Diameter: 2 ½" overall.
-
Projection: 17⁄32"
-
Interior Turnlatch
-
Diameter: 2 ½" overall.
-
Projection: 1 11⁄32" overall.
This deadbolt requires a 2 1⁄8" door prep, and fits standard 1 ¾" thick doors.
Kits for accommodating thicker doors may be special ordered at 360-379-9030.
We are also offering this deadbolt in a polished brass finish, and a nickel plated finish.
For a cylinder lock with doorknob receiver, see our mortise lock L-9SP, which is available in the antique brass finish also.
For a Baldwin lock with beautiful Victorian flair, see our Windsor cylinder deadbolt.
If you have a double door, or would just like the extra bolt functionality on your single entry door, we suggest using the following popular door bolts:
