ZP1MKKSET-1  White Porcelain Lever Handle Door Set with Gold Trim and 2 ¼" Backset Mortise Lock

ZP1MKKSET-2  White Porcelain Lever Handle Door Set with Gold Trim and 2 ⁵⁄₈" Backset Mortise Lock

The porcelain lever handles in this set are actually a one piece "unit" with the rosette.  The cover of the rosette is threaded, and twists off to reveal the screw holes to mount.  This leaves a "clean" installation look, which is seen in many European doorknob sets.

This set uses a steel shaft (also called a spindle) with no threads.  The lever handles are spring loaded to "snap" back to a level position.

This is an interior mortise passage set that locks from both sides using a skeleton key.

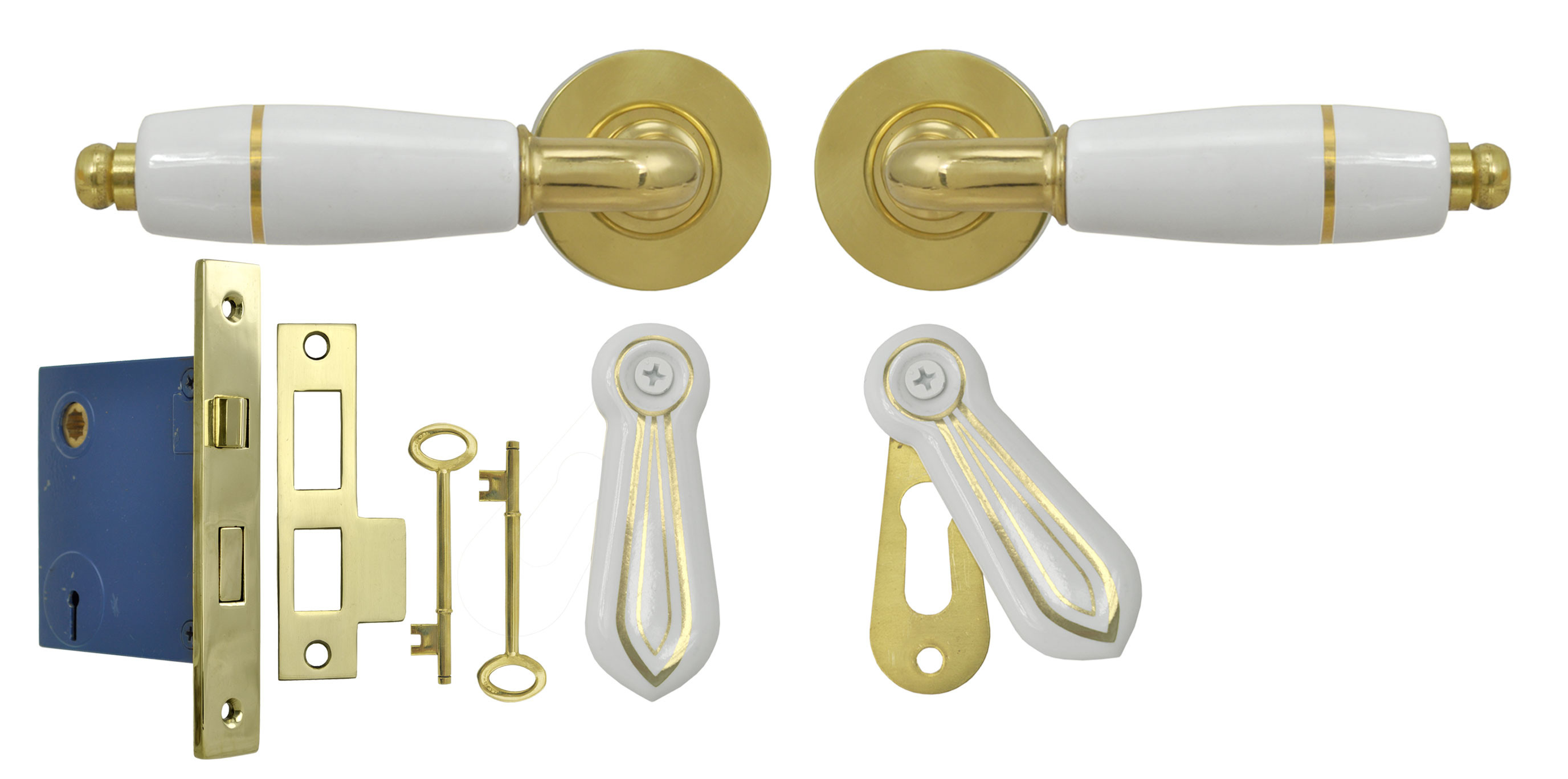

The Complete Set Includes:

• Two Lever Handles with Attached Rosettes and Steel Connecting Spindle
• One Mortise Lock with 2 Skeleton Keys (Choice of 2 ¼" or 2 ⁵⁄₈" Backset)
• Two Porcelain Swing Cover Keyholes

Measurements:

• Lever Handles:  4 ½" long x 1" thick; 2 ¼" projection.
• Rosettes:  2" diameter.
• Keyholes:  2 ⁵⁄₈" high x 1" wide overall.
  • Inside Keyhole:  ⁵⁄₈" tall.
  • Top of keyhole width is ⁵⁄₁₆".
• Mortise Locks:
  • 2 ¼" Backset Lock:
    • Lock Body:  3 ¾" tall x 2 ⁷⁄₈" deep x ⁵⁄₈" thick.
    • Faceplate:  1" wide x 6" tall; ³⁄₁₆" thick.
    • Strike Plate:  4 ½" tall x 1" wide (plus tongue).
    • Distance from the center of the doorknob receiver to the center of the round keyhole bit is 2 ¼".
  • 2 ⁵⁄₈" Backset Lock:
    • Lock Body:  3 ¾" tall x 3 ³⁄₁₆" deep, and ⁵⁄₈" thick.
    • Faceplate:  1" wide x 6" tall; ³⁄₁₆" thick.
    • Strike Plate:  4 ½" tall x 1" wide (plus tongue).
    • Distance from the center of the doorknob receiver to the center of the round keyhole bit is 2 ¼".

Mounting screws for the hardware are included with each set.
