ZLW-500A Original Ives Patent Pocket Door Hanger/Roller Mechanism

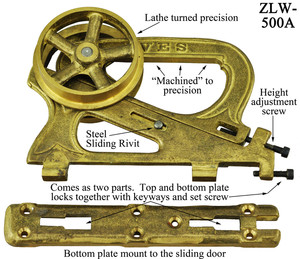

Reputation says Vicky to the max...but a bit difficult to install. Note the bottom plate that goes onto the door and then the roller mechanism that plys the rails above. Adjustments for height and milled surfaces make the wheel roll smooth.
The ride on wooden tracks: The normal space is 1" - 1 ¼" between the tracks.
Sizes: Bottom Milled Door Plate is 1 ½" wide and 9 7⁄8" long.
Roller Mechanism: 7" tall by 8" wide with 4 1⁄8" diameter wheel.
Load Limit: 300 lbs. per pair.
Price is for ONE Pair, which mounts ONE single pocket door. If you have double doors, you will need two pairs.
The number of processes that goes into making just one of these is incredible. Casting, milling, lathe turning and special threading all join together to bring this rare piece of hardware back to life from our Victorian past.
The ride on wooden tracks: The normal space is 1" - 1 ¼" between the tracks.
Sizes: Bottom Milled Door Plate is 1 ½" wide and 9 7⁄8" long.
Roller Mechanism: 7" tall by 8" wide with 4 1⁄8" diameter wheel.
Load Limit: 300 lbs. per pair.
Height Adjustment Screw: 1/4"-20 thread, 1 ¾" long.
