Victorian Windsor Pattern Single Entry Door Set (ZB80SET1)
Price:$1,046.00
Quantity:
Add to cart
Add to cart

Cylinder Length:
L-9CC 1" Cylinder
L-9C4 1 1/4" Cylinder
L-150S 1 1/2" Cylinder
L-175S 1 3/4" Cylinder
Set Door Handing
:
Right Hand

Left Hand
Finish:
Antique Brass
Oil Rubbed Bronze

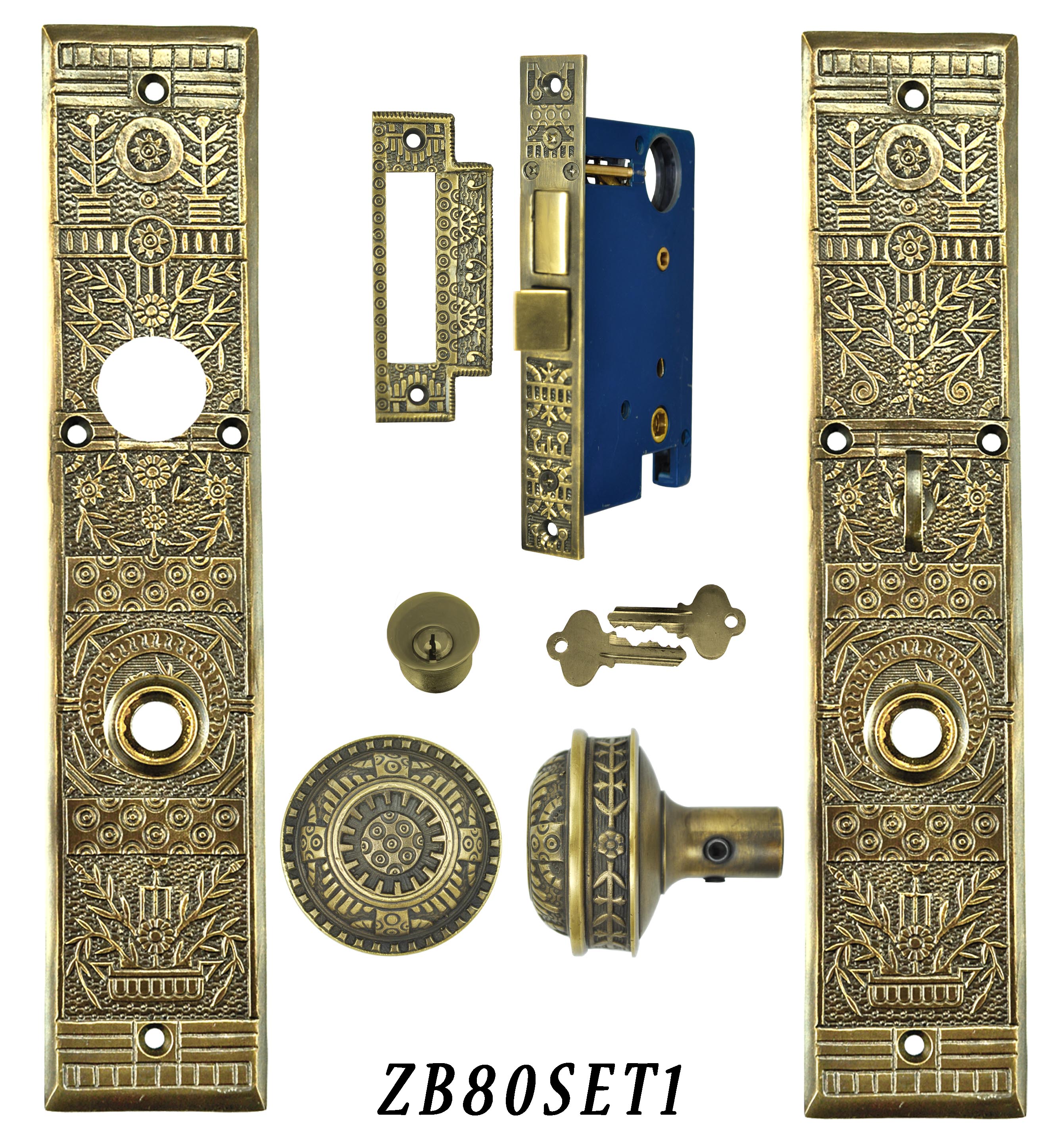

Victorian Windsor Pattern Single Entry Door Set (ZB80SET1)

ZB80SET1-DK  Antique Brass Finish Windsor Exterior Entry Reproduction Door Plate 12" Tall

ZB80SET1-OB  Oil Rubbed Bronze Finish Windsor Exterior Entry Door Plate 12" Tall

The Windsor pattern was originally designed by the Reading Hardware Co. circa 1885.  This classic pattern has been recreated in solid brass by the lost wax process and darkened to look like an original patina.

Each Door Set Includes:

  • One Interior Door Plate with Turnlatch Function
  • One Exterior Door Plate
  • Two Doorknobs
  • One Doorknob Spindle
  • One Mortise Lock
  • One Cylinder Lock

Measurements:

  • Door Plates:  2 38" wide x 12" tall.
  • Doorknobs:  2 ¼" diameter; each projects 2 ½".
  • Entry Mortise Lock
    • Lock Body:  5 ½" tall by 3 58" deep.  1316" thickness.
    • Lock Face:  7 ½" tall x 1" wide.
    • Backset:  2 ½", including the thickness of the face plate.
    • Catch Plate:  4 78" tall by 1 4 78" wide.
    • Distance from the center of the bolt throw hole to the center of the door knob spindle hole is 2 ½".
    • Distance from center of cylinder hole to top of door plate is 4".
    • Measurement from the center of the cylinder hole to the doorknob is 3 ¾".

Mounting screws are included for all hardware in this set.
