Z810MKKSET Lost Wax R&E Oriental Motif Interior Locking Mortise Door Sets
This may be the finest Aesthetic door plate to have ever been created. This door plate features an Asian woman dressed in a kimono in a peaceful oriental setting. The top of the door plate is in the shape of an traditional bamboo tea house. "Chinoiserie," items representing the exotic country of China, was extremely popular with Victorians and Edwardians.
This complete door set is hand-finished in our Antique Brass Finish.
This interior mortise passage set locks from both sides using a skeleton key.
The Complete Set Includes:
-
Two Door Plates with Doorknob & Keyhole Function
-
Two Doorknobs with the Connecting Spindle
-
One Mortise Lock with 2 Skeleton Keys (choice of 2 ¼" or 2 5⁄8" backset)
Measurements:
-
Door Plates: 2 ½" wide x 8 ½" tall.
-
Mortise Locks:
-
2 ¼" Backset Lock:
-
Lock Body: 3 ¾" tall x 2 7⁄8" deep x 5⁄8" thick.
-
Faceplate: 1" wide x 6" tall; 3⁄16" thick.
-
Strike Plate: 4 ½" tall x 1" wide (plus tongue).
-
Distance from the center of the doorknob receiver to the center of the round keyhole bit is 2 ¼".
-
2 5⁄8" Backset Lock:
-
Lock Body: 3 ¾" tall x 3 3⁄16" deep, and 5⁄8" thick.
-
Faceplate: 1" wide x 6" tall; 3⁄16" thick.
-
Strike Plate: 4 ½" tall x 1" wide (plus tongue).
-
Distance from the center of the doorknob receiver to the center of the round keyhole bit is 2 ¼".
Mounting screws for the hardware are included with each set.

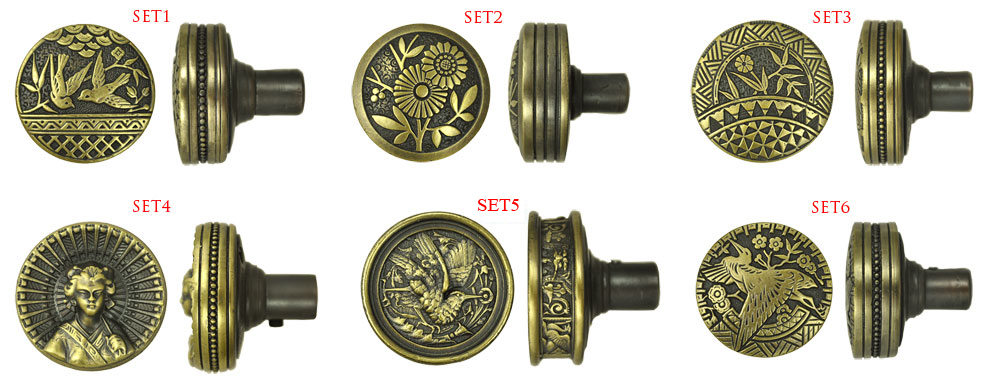

SET1: 2 1⁄8" diameter; 2" projection.
SET2: 2 3⁄8" diameter; 2" projection.
SET3: 2 1⁄8" diameter; 1 7⁄8" projection.
SET4: 2 ¼" diameter; 2" projection.
SET5: 2 ¼" diameter; 1 7⁄8" projection.
SET6: 2 ¼" diameter; 2" projection.
