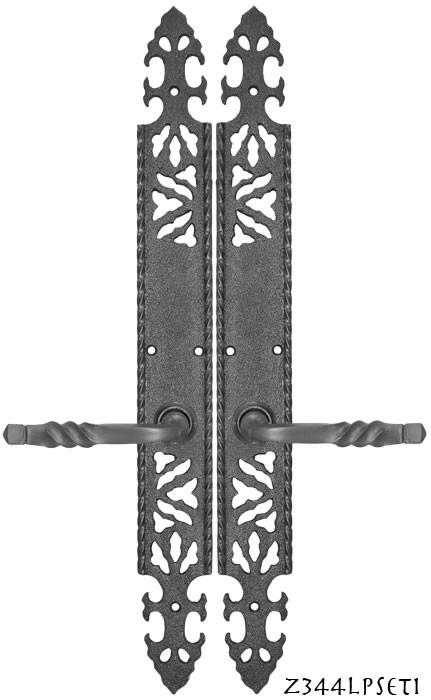

Z344LPSET1 Cast Iron Low Lever Handle Passage Door Set with 2.375" Backset Latch
Solid iron interior passage door set. An attractive design for Gothic, Rustic or Arts & Crafts décors.
This is an interior non-locking passage set.

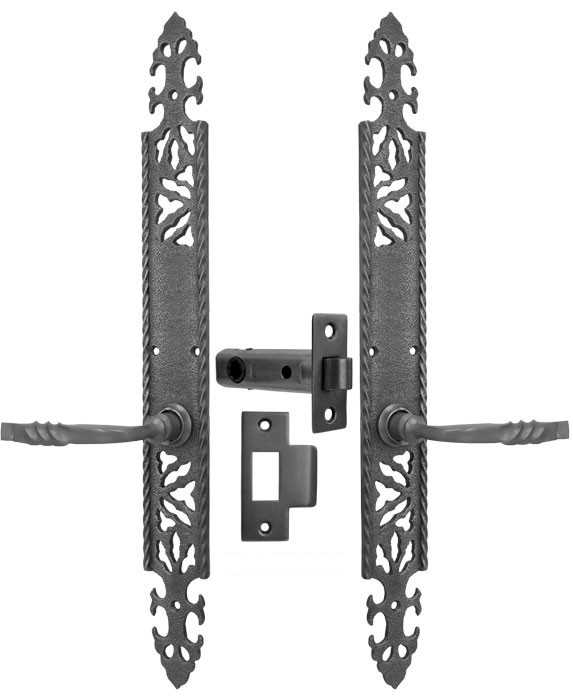

The Set Includes:
-
Two Door Plates with "Low Handle" Function
-
Two Lever Handles with the Connecting Spindle
-
One Tubular Passage Latch
Measurements:
-
Door Plates: 17 ¼" tall x 2" wide.
-
Lever Handles: 4 3⁄8" long; each projects 2 ¼". 5⁄8" thick handles.
-
Tubular Passage Latch:
-
Backset: 2 3⁄8"
-
Latch Face: 1" wide x 2 ¼" tall.
-
Catch Plate: 1" wide x 2 ¾" tall.
-
Installation: Latch can be installed by drilling a 7/8" hole, then recessing the wood for the latch face.
Mounting screws are included with the hardware for this set.
