Z26SET3 Windsor Pattern Entry Door Set with Swing Cylinder Cover

In the 1880's one of the finest hardware companies was Reading Hardware . Windsor was their most popular pattern, and they produced Victorian hardwarefor throughout the home in that design.

Windsor Pattern Hardware is lost wax cast of solid brass, then antique finished & lacquered.

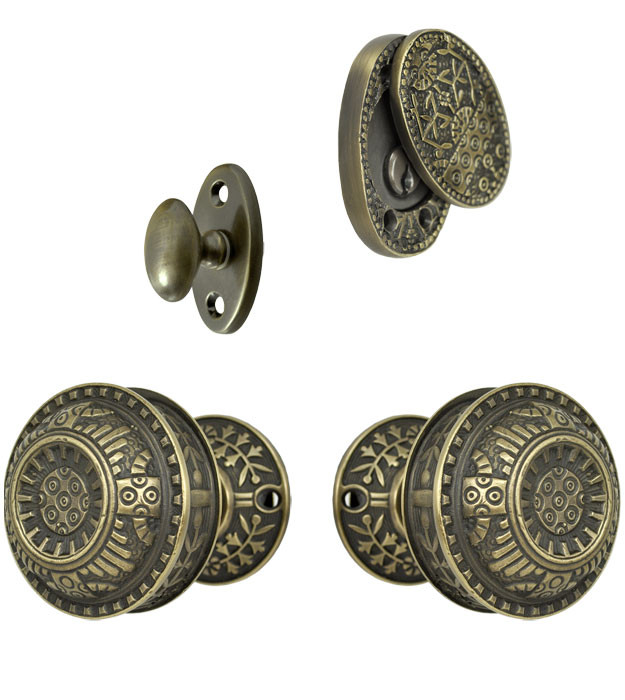

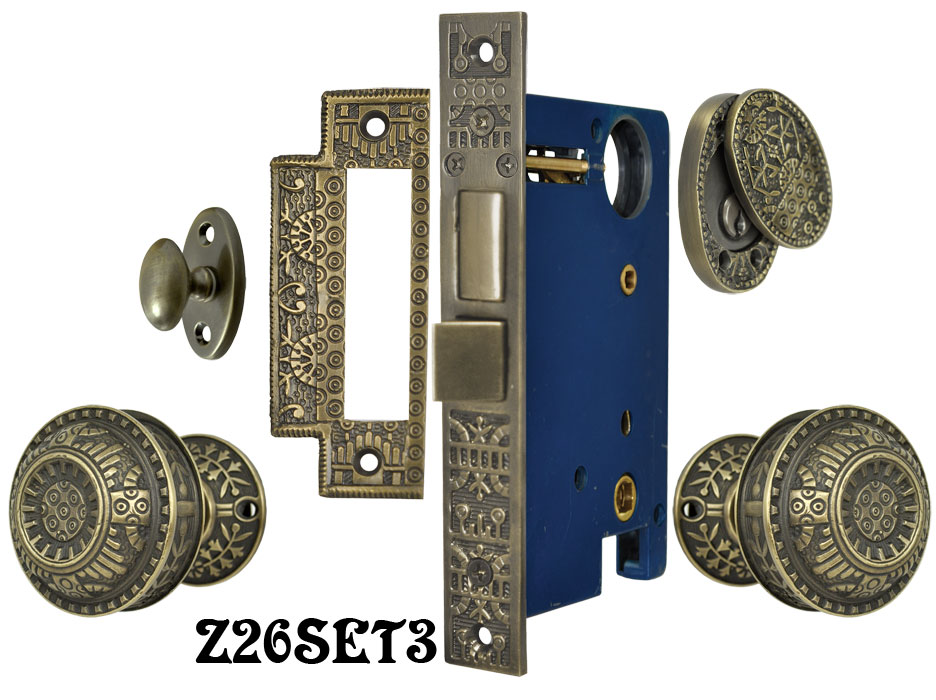

The complete door set includes:

1. Two Doorknob Rosettes
2. Two Solid Brass Doorknobs with connecting spindle
3. Swinging Cylinder Cover
4. Mortise Lock
5. Cylinder Lock: See our Lock Cylinder Size Chart to select the correct cylinder length for your door.
6. Turnlatch

Set Measurments:

Rosettes:   2 1/8" Diameter

Doorknobs: 2 1/4" diameter by 2 1/2" tall.

Lock: Lock body measures 5 1/2" tall by 3 5/8" deep. 13/16" thickness.

Lock face is 1" wide by 7 1/2" long. Backset is 2 1/2", including the thickness of the face plate. Distance from the center of the bolt throw hole to the center of the door knob spindle hole is 2 1/2". Catch plate is 4 7/8" long by 1 7/8".

Cylinder Cover: Measures 2 1/2" long by 1 3/4" wide. Cylinder hole for standard 1.156" (1 5/32") cylinder dia.

Turnlatch:  Square shaft measures 3/16" in diameter, and is 7/8" long. Knob measures 1 1/8" tall by 3/4" wide. Backplate measures 2" tall by 1 1/8" wide.
