Windsor Pattern Entry Door Set with Swing Cylinder Cover (Z26SET2)
Price:$834.76
Quantity:
Add to cart
Add to cart

Cylinder Length:
L-9CC 1" Cylinder
L-9C4 1 1/4" Cylinder
L-150S 1 1/2" Cylinder
L-175S 1 3/4" Cylinder
Set Door Handing
:
Right Hand

Left Hand
Windsor Pattern Entry Door Set with Swing Cylinder Cover (Z26SET2)

Z26SET2 Windsor Pattern Entry Door Set with Swing Cylinder Cover



In the 1880's one of the finest hardware companies was Reading Hardware . Windsor was their most popular pattern, and they produced Victorian hardwarefor throughout the home in that design.

Windsor Pattern Hardware is lost wax cast of solid brass, then antique finished & lacquered.

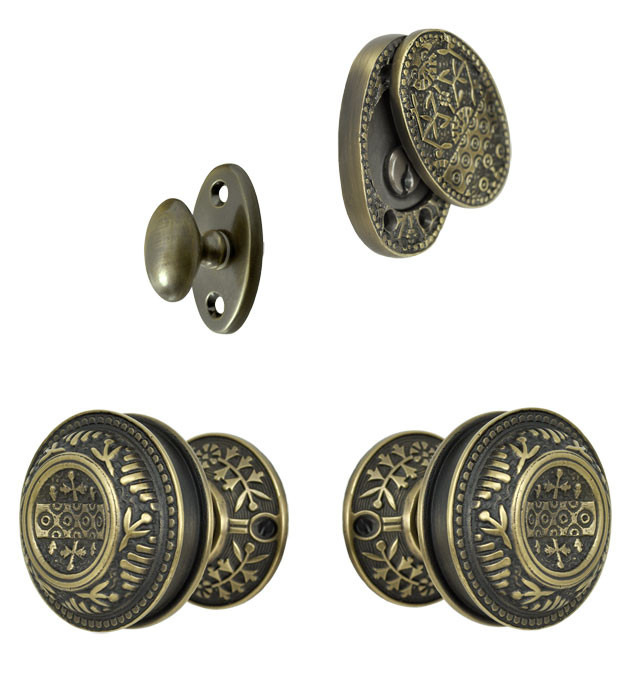

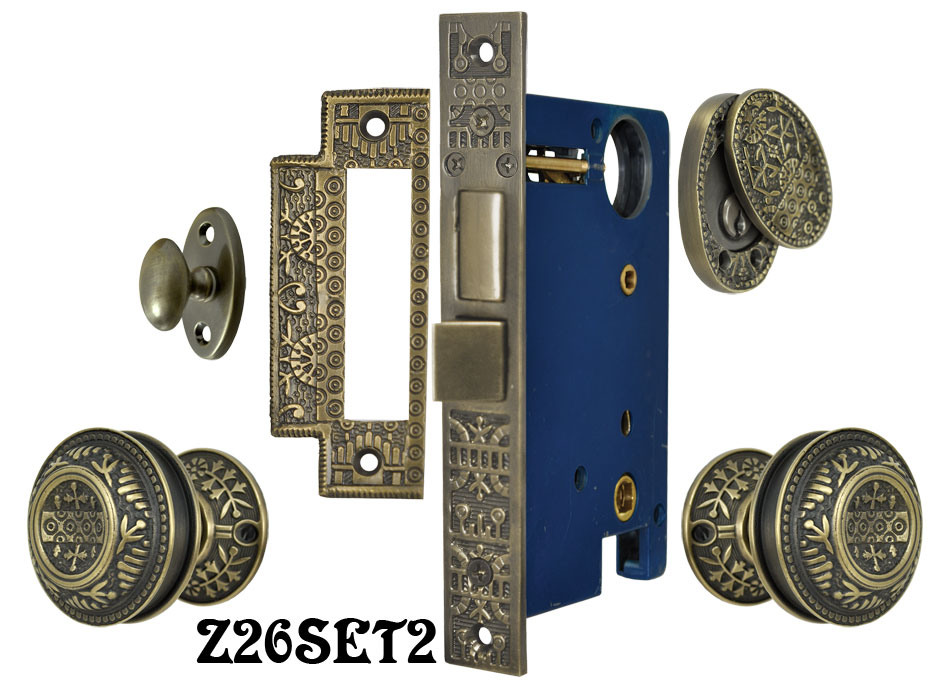

The complete door set includes:

  1. Two Doorknob Rosettes
  2. Two Solid Brass Doorknobs with connecting spindle
  3. Swinging Cylinder Cover
  4. Mortise Lock
  5. Cylinder Lock: See our Lock Cylinder Size Chart to select the correct cylinder length for your door.
  6. Turnlatch

Set Measurments:



Rosettes:   2 1/8" Diameter

Doorknobs: 2 1/8" diameter by 2" tall.

Lock: Lock body measures 5 1/2" tall by 3 5/8" deep. 13/16" thickness.

Lock face is 1" wide by 7 1/2" long. Backset is 2 1/2", including the thickness of the face plate. Distance from the center of the bolt throw hole to the center of the door knob spindle hole is 2 1/2". Catch plate is 4 7/8" long by 1 7/8".

Cylinder Cover: Measures 2 1/2" long by 1 3/4" wide. Cylinder hole for standard 1.156" (1 5/32") cylinder dia.

Turnlatch:  Square shaft measures 3/16" in diameter, and is 7/8" long. Knob measures 1 1/8" tall by 3/4" wide. Backplate measures 2" tall by 1 1/8" wide.
