Victorian Amiens Gothic Door Plate Entry Set (Z260SET)
Price:$1,016.00
Quantity:
Add to cart
Add to cart

Cylinder Length:
L-9CC 1" Cylinder
L-9C4 1 1/4" Cylinder
L-150S 1 1/2" Cylinder
L-175S 1 3/4" Cylinder
Set Door Handing
:
Right Hand

Left Hand

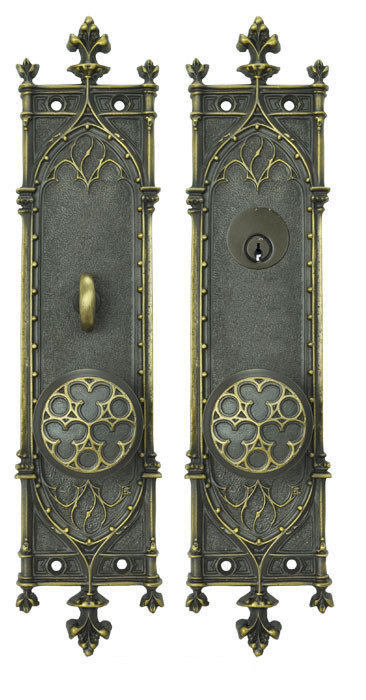

Victorian Amiens Gothic Door Plate Entry Set (Z260SET)

Cast in solid brass, using the Lost Wax casting method to preserve the details of the original. Amiens was a church and town in France famous for its Gothic architecture.

 These Gothic hardware antiques were reproduced using Lost Wax casting for the finest details, then finished with a antique brass Finish similar to bronze.

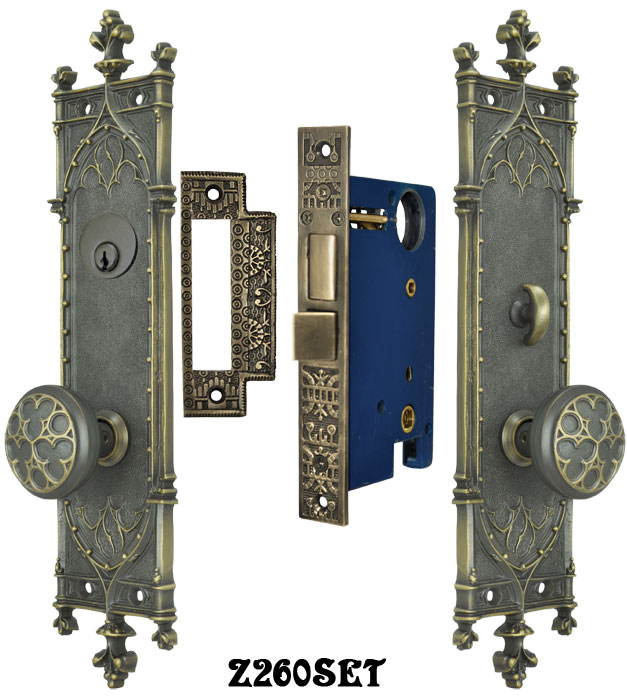

The complete door set includes:

  1. Interior Door Plate
  2. Exterior Door Plate
  3. Two Doorknobs
  4. Mortise Lock
  5. Cylinder Lock. See our Lock Cylinder Size Chart to select the correct cylinder length for your door.

Backplates Measure  13 5/8" tall by 3" wide.

Measurement from the center of the cylinder hole to the center of the doorknob spindle hole is 3 3/4".

Lock body measures 5 1/2" tall by 3 5/8" deep. 13/16" thickness.

Lock face is 1" wide by 7 1/2" long.

Backset is 2 1/2", including the thickness of the face plate.

Distance from the center of the bolt throw hole to the center of the door knob spindle hole is 2 1/2".

Catch plate is 4 7/8" long by 1 7/8".
