Gothic Amiens Interior Passage Latch Doorset
with 2 3⁄8" Backset

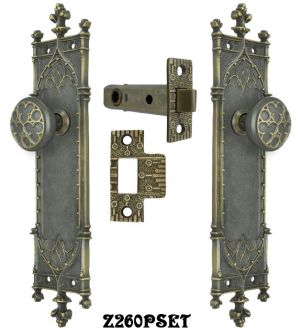

Z260PSET-DK Antique Brass Finish Tubular Latch Door Set with 2 3⁄8" Backset {PICTURED}
Z260PSET-OB Oil Rubbed Bronze Finish Tubular Latch Door Set with 2 3⁄8" Backset
Amiens was a church and town in France famous for its Gothic Architecture. Excellent quality lost-wax cast brass door plate set with superb detail! This set is supplied with our beautiful Amiens design doorknobs for a complete presentation.
This door set is hand finished in a choice of our Antique Brass Finish (pictured) or our matte black Oil Rubbed Bronze Finish.
This is a non-locking interior passage latch set.
The Complete Set Includes:
-
Two Door Plates with Doorknob Only Function
-
Two Doorknobs with the Connecting Spindle
-
One Tubular Passage Latch with Catchplate
Measurements:
-
Door Plates: 3" wide x 13 5⁄8" tall.
-
Doorknobs: 2 1⁄8" diameter; each projects 2 1⁄4".
-
Passage Latch:
-
Face Plate: 1" wide x 2 ¼" tall.
-
Backset: 2 3⁄8"
-
Latch can be installed by drilling a 7/8" hole, then recessing the wood for the latch face.
Mounting screws for the hardware are included with each set.
* Modern Door Fit Up Kit: This item changes the modern ugly round holes in doors so that antique hardware can be used. This adapter plate will work with our L-6 tubular passage latch. Door must be a minimum of 1 1/8" thick. Plastic sleeve slides over the latch body, and is held in position by screwing metal halves together.
