Interior Privacy Gothic Amiens Doorset
with Amiens Design Doorknobs and Skeleton Keyed Mortise Lock
Z260MKSET-DK1 Antique Brass Finish with 2 ¼" Backset Mortise Lock
Z260MKSET-DK2 Antique Brass Finish with 2 5⁄8" Backset Mortise Lock
Z260MKSET-OB1 Oil Rubbed Bronze Finish with 2 ¼" Backset Mortise Lock
Z260MKSET-OB2 Oil Rubbed Bronze Finish with 2 5⁄8" Backset Mortise Lock
Amiens was a church and town in France famous for its Gothic Architecture. Excellent quality lost-wax cast brass door plate set with superb detail! This set is supplied with our beautiful Amiens design doorknobs for a complete presentation.
This door set is hand finished in a choice of our Antique Brass Finish (pictured) or our matte black Oil Rubbed Bronze Finish.
The interior mortise privacy set locks from one side only using a skeleton key.

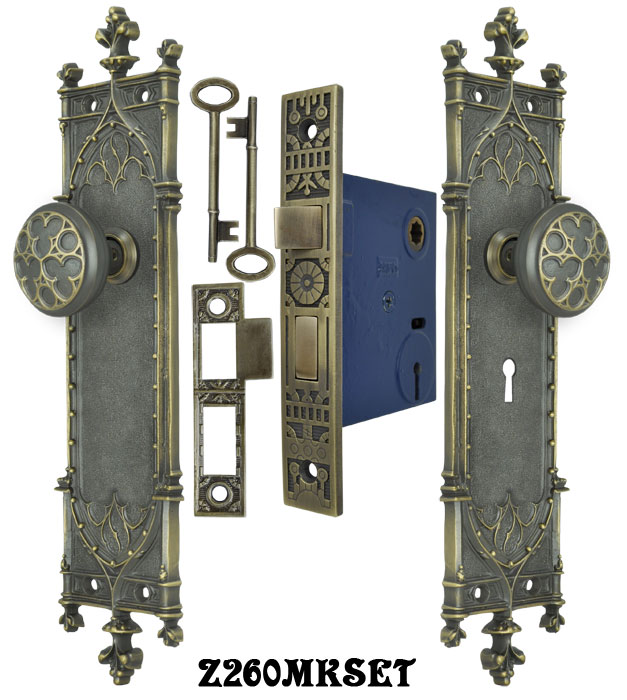

The Complete Set Includes:
-

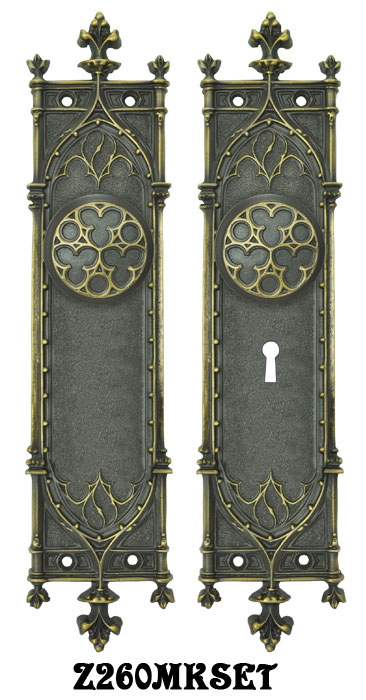

One Door Plate with Doorknob & Keyhole Function
-
One Doorplate with Knob Only Function
-
Two Doorknobs with the Connecting Spindle
-
One Mortise Lock with 2 Skeleton Keys (choice of 2 ¼" or 2 5⁄8" backset)
Measurements:
-
Door Plates: 3" wide x 13 5⁄8" tall.
-
Doorknobs: 2 1⁄8" diameter; each projects 2 ¼".
-
Mortise Locks:
-
2 ¼" Backset Lock:
-
Lock Body: 3 ¾" tall x 2 7⁄8" deep x 5⁄8" thick.
-
Faceplate: 1" wide x 6" tall; 3⁄16" thick.
-
Strike Plate: 4 ½" tall x 1" wide (plus tongue).
-
Distance from the center of the doorknob receiver to the center of the round keyhole bit is 2 ¼".
-
2 5⁄8" Backset Lock:
-
Lock Body: 3 ¾" tall x 3 3⁄16" deep, and 5⁄8" thick.
-
Faceplate: 1" wide x 6" tall; 3⁄16" thick.
-
Strike Plate: 4 ½" tall x 1" wide (plus tongue).
-
Distance from the center of the doorknob receiver to the center of the round keyhole bit is 2 ¼".
Mounting screws for the hardware are included with each set.
