Gothic Byzantine Tubular Door Set
with Locking Privacy Turnlatch - 2 3⁄8" Backset

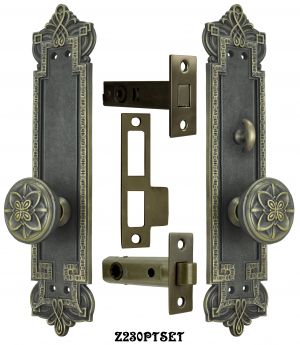

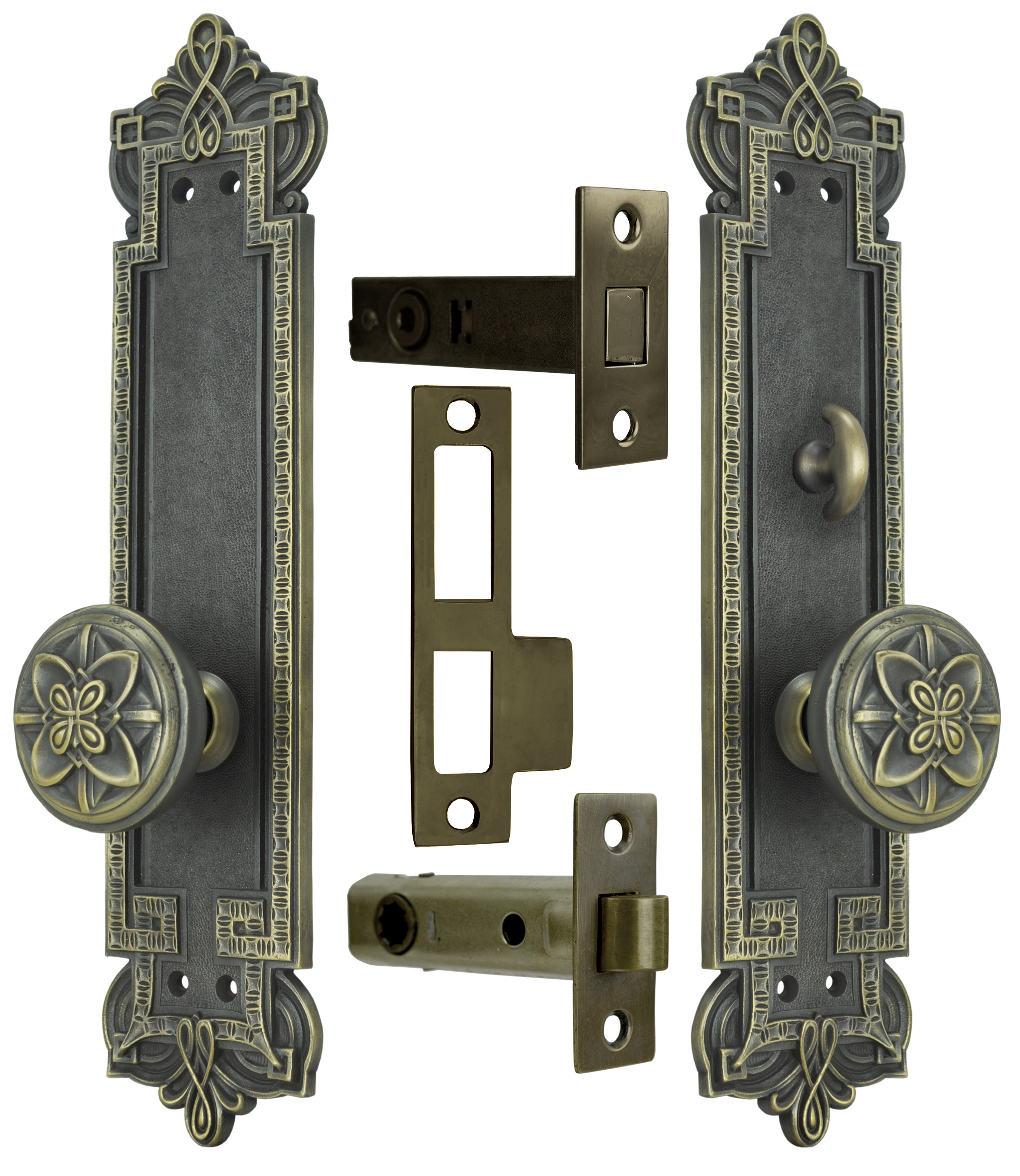

Z230PTSET-DK Antique Brass Finish Gothic Byzantine Interior Privacy Doorset {PICTURED}
Z230PTSET-OB Oil Rubbed Bronze Finish Gothic Byzantine Interior Privacy Doorset
Excellent quality lost-wax cast brass Byzantine Gothic door plate set has superb detail. A classic Grecian "key" design edges the door plate.
This set is an interior privacy set that locks from one side using a turnlatch. Ideal for those who don't want to mortise out a door for a full mortise box. Instead, this set comes with a tubular passage latch and a tubular deadbolt.
This complete door set is available in our hand-finished Antique Brass Finish {Pictured}, or our matte black Oil Rubbed Bronze Finish.
The Set Includes:
-
One Door Plate with Lower Knob Only Function
-
One Door Plate with Knob and Turnlatch Function
-
Two Doorknobs with the Connecting Spindle
-
One Tubular Passage Latch
-
One Tubular Deadbolt Latch
-
One Catchplate for Both Deadbolt and Passage Latch
Measurements:
-
Door Plates: 2 ¾" wide x 12 3⁄8" tall.
-
Doorknobs: 2 3⁄8" diameter; each projects 2 1⁄8".
-
Passage Latch:
-
Face Plate: 1" wide x 2 ¼" tall.
-
Backset: 2 3⁄8"
-
Latch can be installed by drilling a 7/8" hole, then recessing the wood for the latch face.
-
Tubular Deadbolt:
-
Face Plate: 1 1⁄16" wide x 2 ¼" tall.
-
Case Length: 3 ¼" overall.
-
Backset: 2 3⁄8"
-
Catchplate: 4 ½" tall x 1" wide (minus tongue).
Mounting screws are included with all pieces of hardware in this set.
