Gothic Byzantine Interior Passage Door Set (Z230PSET)
Price:$742.45
Quantity:
Add to cart
Add to cart

Options:
Antique Brass Finish
Oil Rubbed Bronze Finish
Extra:
Add L-100-1 Modern Door Fit Up Kit
Gothic Byzantine Interior Passage Door Set (Z230PSET)

Gothic Byzantine Tubular Passage Door Set
with 2 38" Backset

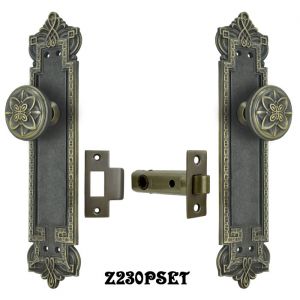

Z230PSET-DK  Antique Brass Finish Gothic Byzantine Interior Passage Latch Doorset {PICTURED}

Z230PSET-OB  Oil Rubbed Bronze Finish Gothic Byzantine Interior Passage Latch Doorset

Excellent quality lost-wax cast brass Byzantine Gothic door plate set has superb detail.  A classic Grecian "key" design edges the door plate.

This set is an interior non-locking passage set.

This complete door set is available in our hand-finished Antique Brass Finish {Pictured}, or our matte black Oil Rubbed Bronze Finish.

The Set Includes:

  • Two Door Plates with Knob Only Function
  • Two Doorknobs with the Connecting Spindle
  • One Tubular Passage Latch with Catchplate

Measurements:

  • Door Plates:  2 ¾" wide x 12 38" tall.
  • Doorknobs:  2 38" diameter; each projects 2 18".
  • Passage Latch:
    • Face Plate:  1" wide x 2 ¼" tall.
    • Backset:  2 38"
    • Latch can be installed by drilling a 7/8" hole, then recessing the wood for the latch face.

Mounting screws are included with all pieces of hardware in this set.

*  Modern Door Fit Up Kit:  This item changes the modern ugly round holes in doors so that antique hardware can be used.  This adapter plate will work with our L-6 tubular passage latch.  Door must be a minimum of 1 1/8" thick.  Plastic sleeve slides over the latch body, and is held in position by screwing metal halves together.
