Gothic Byzantine Tubular Passage Door Set
with Lower Knob Position - 2 3⁄8" Backset

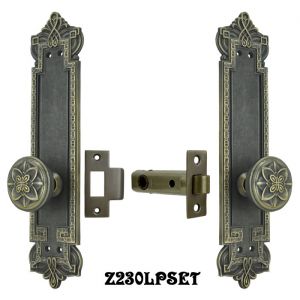

Z230LPSET-DK Antique Brass Finish Gothic Byzantine Low Knob Interior Passage Latch Doorset {PICTURED}
Z230LPSET-OB Oil Rubbed Bronze Finish Gothic Byzantine Low Knob Interior Passage Latch Doorset
Excellent quality lost-wax cast brass Byzantine Gothic door plate set has superb detail. A classic Grecian "key" design edges the door plate.
This set is an interior non-locking passage set.
This complete door set is available in our hand-finished Antique Brass Finish {Pictured}, or our matte black Oil Rubbed Bronze Finish.
The Set Includes:
-
Two Door Plates with Low Knob Only Function
-
Two Doorknobs with the Connecting Spindle
-
One Tubular Passage Latch with Catchplate
Measurements:
-
Door Plates: 2 ¾" wide x 12 3⁄8" tall.
-
Doorknobs: 2 3⁄8" diameter; each projects 2 1⁄8".
-
Passage Latch:
-
Face Plate: 1" wide x 2 ¼" tall.
-
Backset: 2 3⁄8"
-
Latch can be installed by drilling a 7/8" hole, then recessing the wood for the latch face.
Mounting screws are included with all pieces of hardware in this set.
* Modern Door Fit Up Kit: This item changes the modern ugly round holes in doors so that antique hardware can be used. This adapter plate will work with our L-6 tubular passage latch. Door must be a minimum of 1 1/8" thick. Plastic sleeve slides over the latch body, and is held in position by screwing metal halves together.
