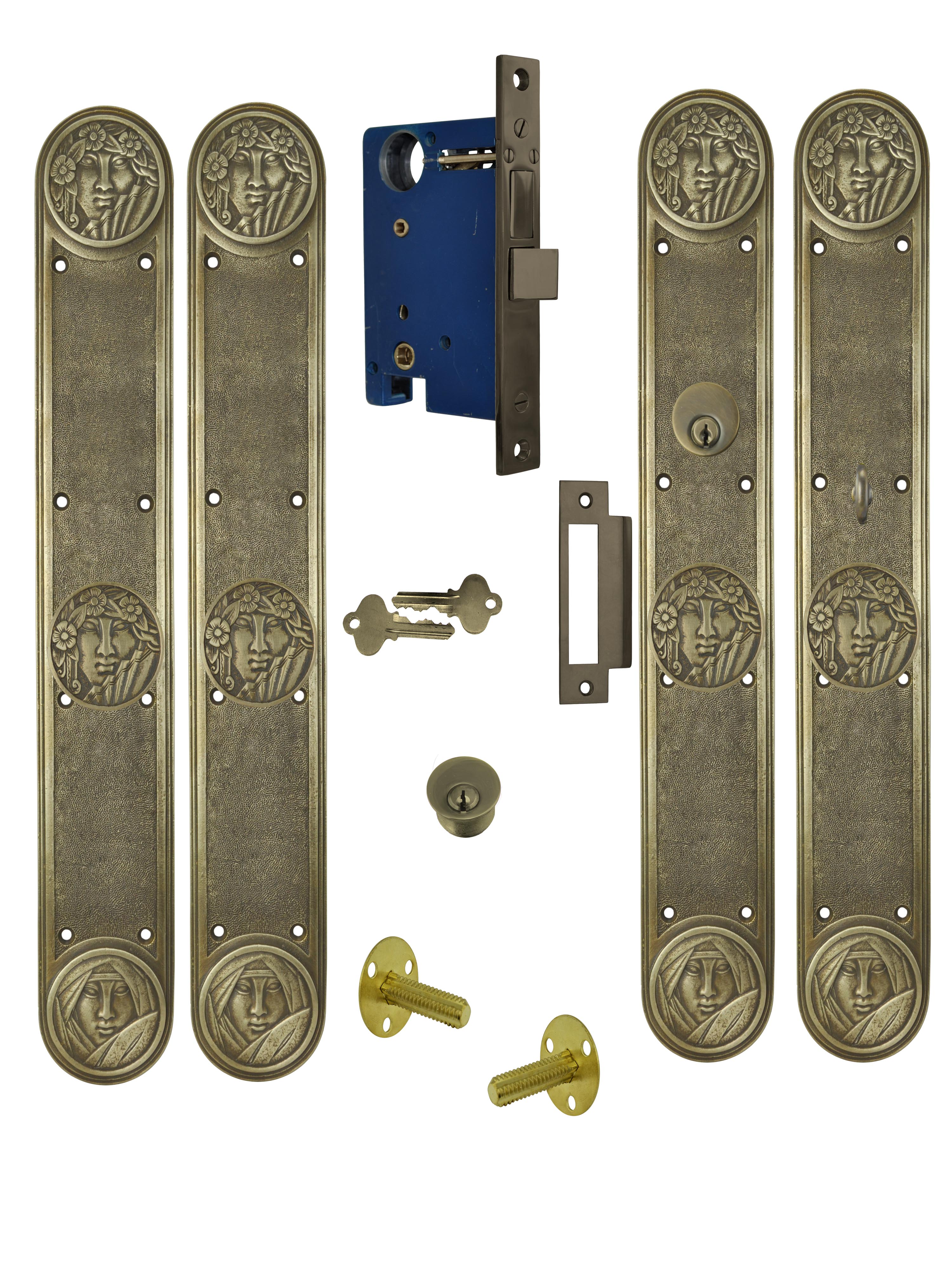

Z205DBS-DK  Antique Brass Finish Art Nouveau Lady Face Double Door Lockset {PICTURED}

Z205DBS-OB  Oil Rubbed Bronze Finish Art Nouveau Lady Face Double Door Lockset

Z205DBS-2T  Two-Tone Black & Brass Finish Art Nouveau Lady Face Double Door Lockset

More a work of art than a simple door plate.  The antique original is marked "Russwin", formerly R&E, the famous Russell & Erwin manufacturers.  We assume that the originals were custom made, not a stock item.  The Morris influence is strong in this design.

This is an Exterior Entry with Cylinder Lock set for double doors.

The complete door set includes:

• One Exterior Door Plate
• One Interior Door Plate with Turnlatch Function
• Two Door Plates with "Low Knob" Function
• Four Doorknobs
• One Mortise Entry Lock
• One Cylinder Lock
  • Please see our Lock Cylinder Size Chart to select the correct cylinder length for your door.
• One Regular Spindle for the Active Door
• Two Dummy Spindles for the Passive Door

This complete door set is available in several hand-applied antique finishes.

Measurements:

• Door Plates:  17 ³⁄₈" tall by 2 ⁵⁄₈" wide overall.
• Doorknobs:  2 ¼" diameter; each projects 1 ¾".
• Mortise Lock:
  • Backset:  2 ½"
  • Lock Body:  5 ½" tall by 3 ⁵⁄₈" deep.  ¹³⁄₁₆" thickness.
  • Lock Face:  7 ½" tall x 1" wide.
  • Catch Plate:  4 ⁷⁄₈" tall by 1 ⁷⁄₈" wide.
  • Center of the lock cylinder to the center of the door knob spindle hole is 3 ¾".
  • Distance from the center of the bolt throw hole to the center of the doorknob spindle hole measures 2 ½".

Mounting screws are included for each piece of hardware in this set.
