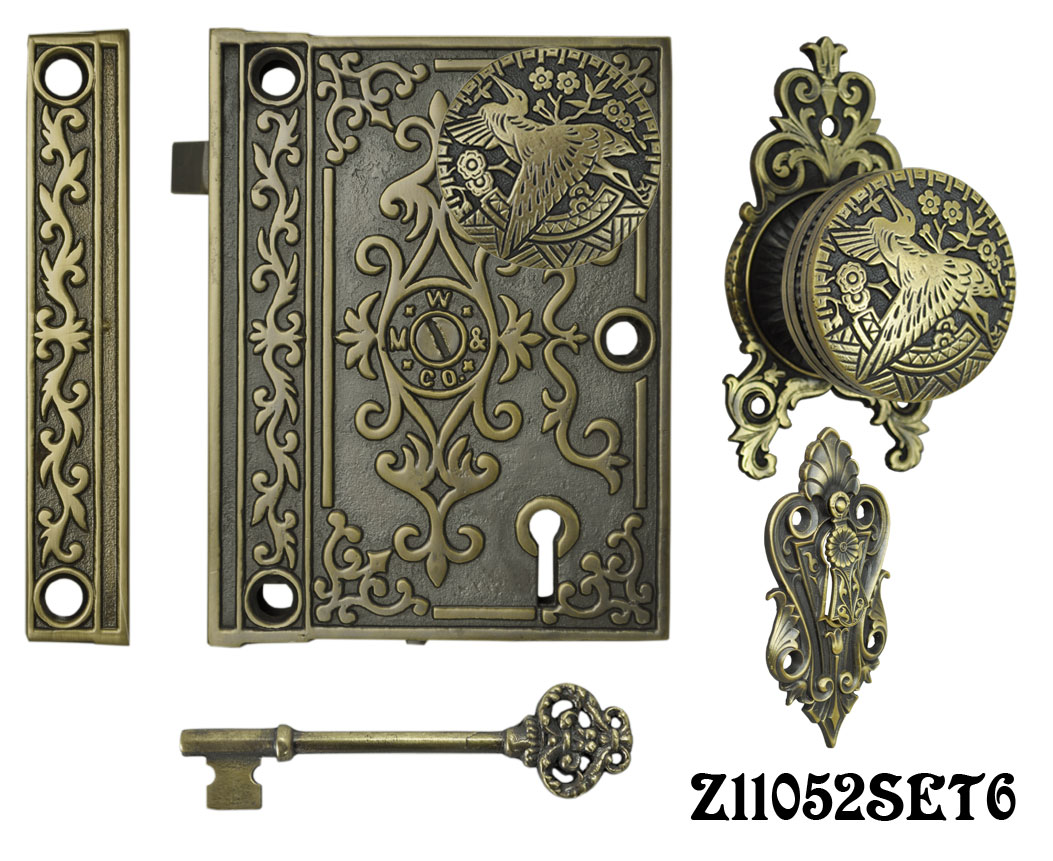

Z11052SET6 Decorative Surface Mounted Interior Locking Door Set with Aesthetic Knob
This Surface mounted passage door set is cast in solid brass.
This lock has a passage turn latch with a star broach, a locking key bolt that works from either side of the door, and a manual privacy bolt (operable from only inside the room and independent of the key.
12 knob choices available.
Set Includes:
1 Set of Knobs with connecting spindle
1 door knob rossette
1 surface mounted lock and catch.
1 key hole escucheon
Measurements:
Case: 4 3/4" tall; 3 5/8" wide; 13/16" thick. Backset: 2 1/2" Catch: 4 3/4" tall; 13/16" wide Key: 3 3/4" long. Center of doorknob receiver to center of keyhole: 2 3/4".
Rosette Measures 2 1/2" wide by 4 1/2" tall
Key hole escucheon: 4" tall by 2" wide.
Doorknobs:
Set1: 2 1/8" diameter
Set2: 2 3/8" diameter
Set3: 2 1/8" diameter
Set4: 2 3/8" diameter
Set5: 2 3/8" diameter
Set6: 2 1/4" diameter
Set7: 2 1/4" diameter
Set8: 2 3/8" diameter
Set9: 2 1/4" diameter
Set10: 2 1/4" diameter
Set11: 2 7/8" diameter (This is one Impressive LARGE KNOB!)
Set12: 2 3/8" diameter
