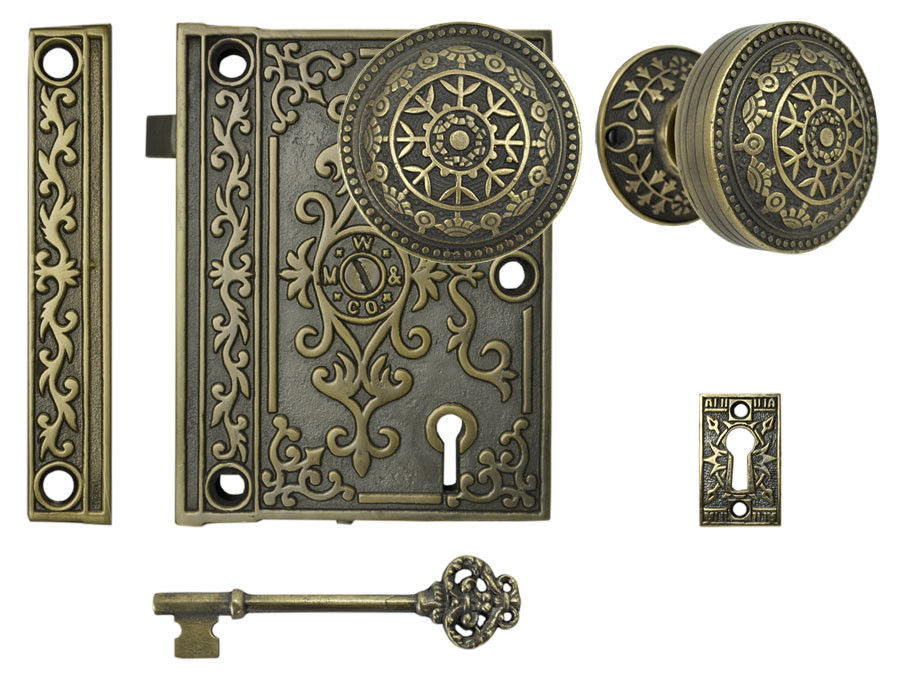

Z11026SET1 Decorative Surface Mounted Interior Locking Door Set
This Surface mounted passage door set is cast in solid brass.
This lock has a passage turn latch with a star broach, a locking key bolt that works from either side of the door, and a manual privacy bolt (operable from only inside the room and independent of the key
Set Includes:
1 Set of Knobs with connecting spindle
1 door knob rossette
1 surface mounted lock and catch.
1 key hole escucheon
Measurements:
Case: 4 3/4" tall; 3 5/8" wide; 13/16" thick. Backset: 2 1/2" Catch: 4 3/4" tall; 13/16" wide Key: 3 3/4" long. Center of doorknob receiver to center of keyhole: 2 3/4".
Rosette is 2 1/8" in diameter,
knobs are 2 1/4" in diameter.
Key hole escucheon: 1 3/4" tall by 1" wide.
