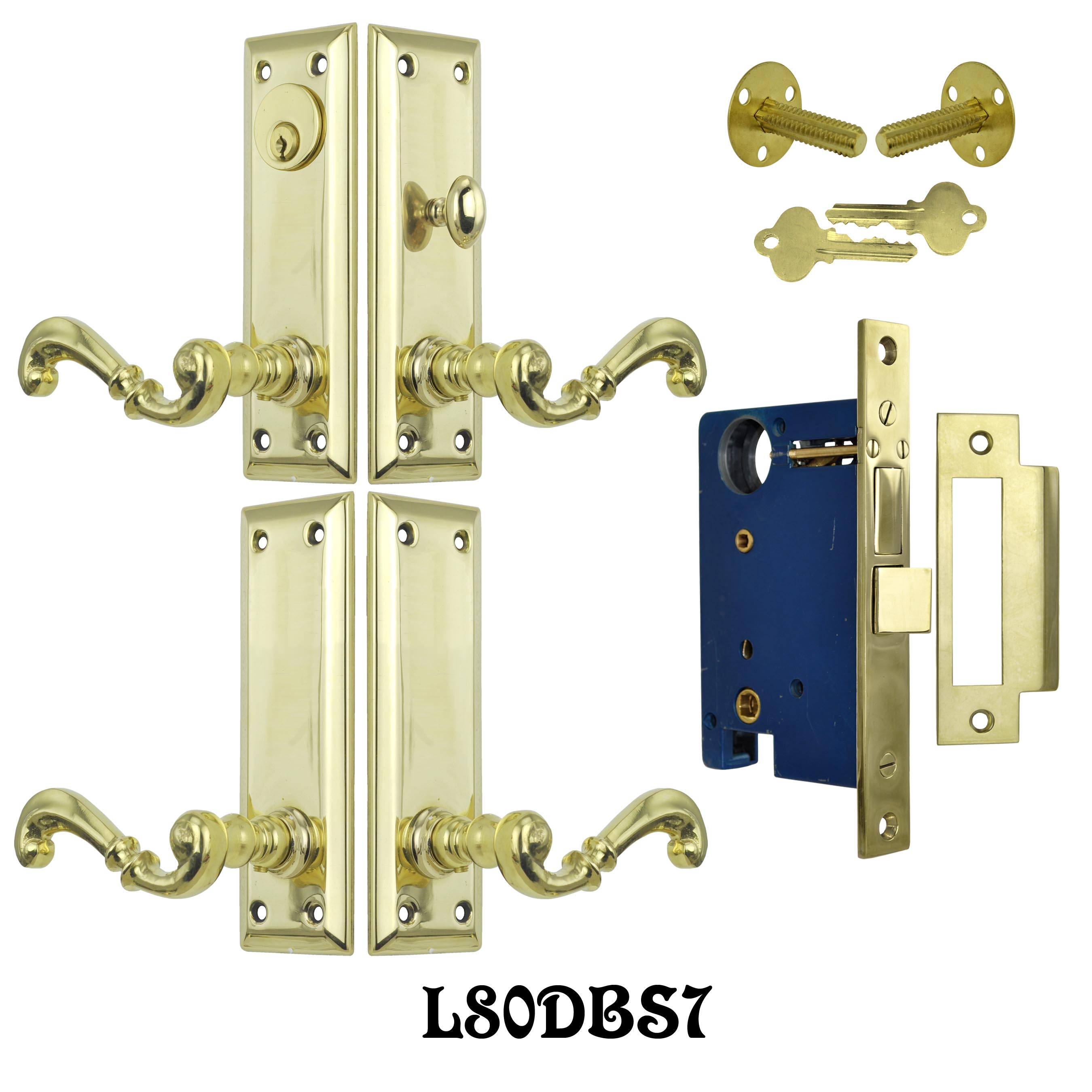

L80DBS7-PB  Polished Unlacquered Brass Double Entry Door Lever Handle Set {PICTURED}

L80DBS7-DK  Antique Brass Finish Double Entry Door Lever Handle Set

L80DBS7-OB  Oil Rubbed Bronze Finish Double Entry Door Lever Handle Set

This complete door set is paired with our classic scroll design French lever handles.

The complete door set includes:

• One Exterior Door Plate
• One Interior Door Plate with Turnlatch Function
• Two Door Plates with "Low Knob Only" Function
• Four Lever Handles
• One Connecting Doorknob Spindle for the Active Door
• Two Dummy Doorknob Spindles for the Passive Door
• One Entry Mortise Lock
• One Cylinder Lock
  • Please refer to our Lock Cylinder Size Chart to select the correct cylinder length for your door.

Measurements:

• Door Plates:  2 ¼" wide x 7" tall overall.
• Lever Handles:  4 ³⁄₈" long; each projects 2 ³⁄₈".
• Mortise Lock:
  • Backset:  2 ½", including the thickness of the face plate.
  • Lock Body:  5 ½" tall by 3 ⁵⁄₈" deep.  Thickness is ¹³⁄₁₆".
  • Lock Face:  7 ½" tall x 1" wide.
  • Catch Plate:  4 ⁷⁄₈" tall by 1 ⁷⁄₈" wide.
  • Measurement from the center of the cylinder hole to the center of the doorknob spindle hole is 3 ¾".
  • Distance from the center of the bolt throw hole to the center of the door knob spindle hole is 2 ³⁄₈".

Mounting screws are included for each item in this doorset.
