L80DBS  Clear Glass Knobs Option

L80DBS2  Blue Glass Knobs Option

L80DBS3  Green Glass Knobs Option

L80DBS4  White Glass Knobs Option

L80DBS5  Round Brass Knobs Option

L80DBS6  Oval Brass Knobs Option

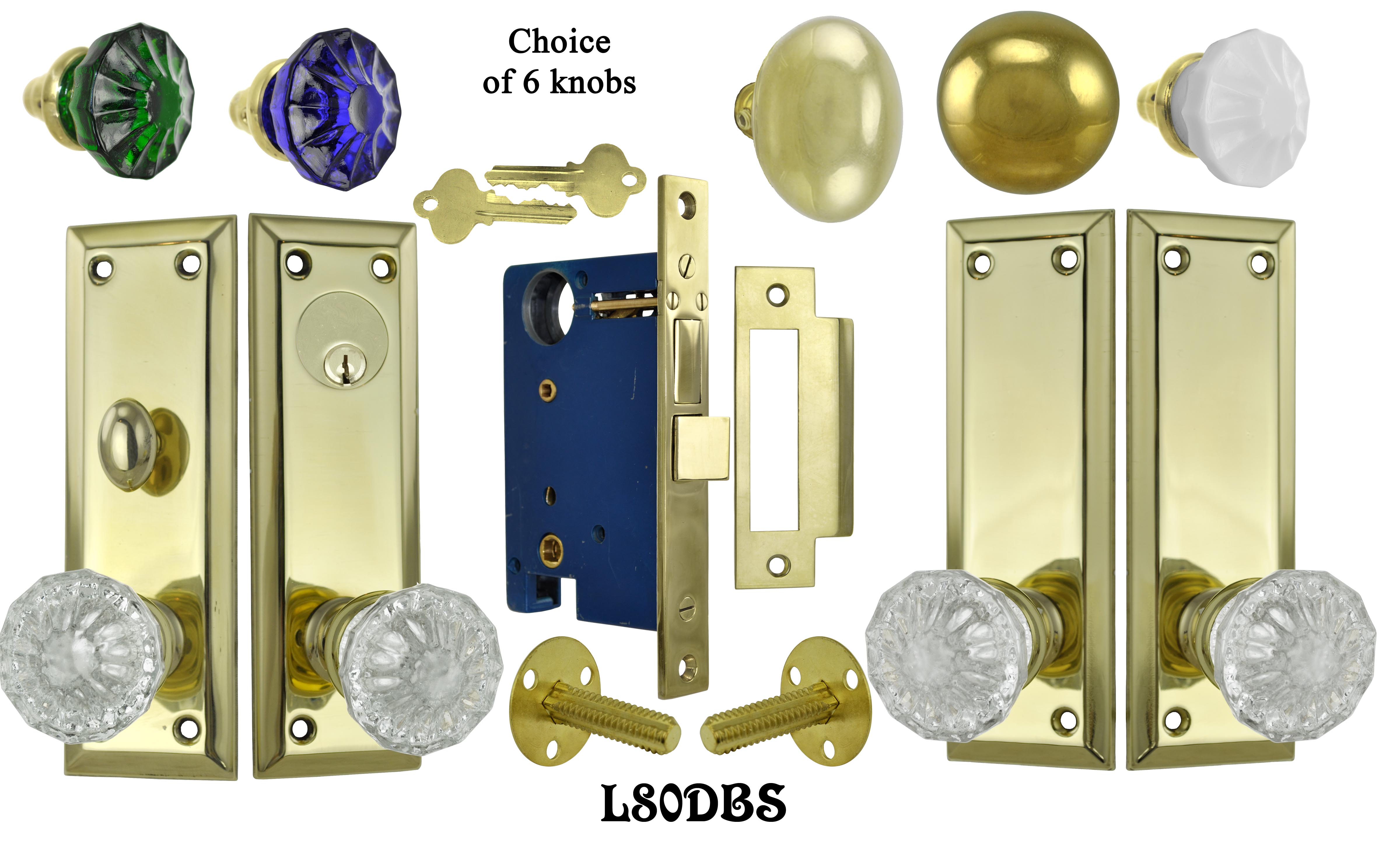

The complete door set includes:

• One Exterior Door Plate
• One Interior Door Plate with Turnlatch Function
• Two Door Plates with "Knob Only" Function
• Four Doorknobs
• One Connecting Doorknob Spindle for the Active Door
• Two Dummy Doorknob Spindles for the Passive Door
• One Entry Mortise Lock
• One Cylinder Lock
  • Please refer to our Lock Cylinder Size Chart to select the correct cylinder length for your door.

Measurements:

• Door Plates:  2 ¼" wide x 7" tall overall.
• Mortise Lock:
  • Backset:  2 ½", including the thickness of the face plate.
  • Lock Body:  5 ½" tall by 3 ⁵⁄₈" deep.  Thickness is ¹³⁄₁₆".
  • Lock Face:  7 ½" tall x 1" wide.
  • Catch Plate:  4 ⁷⁄₈" tall by 1 ⁷⁄₈" wide.
  • Measurement from the center of the cylinder hole to the center of the doorknob spindle hole is 3 ¾".
  • Distance from the center of the bolt throw hole to the center of the door knob spindle hole is 2 ³⁄₈".

Mounting screws are included for each item in this doorset.
