Small Door Plate and Deco Style Doorknob Interior Passage Set
with 2.375" Backset Tubular Latch

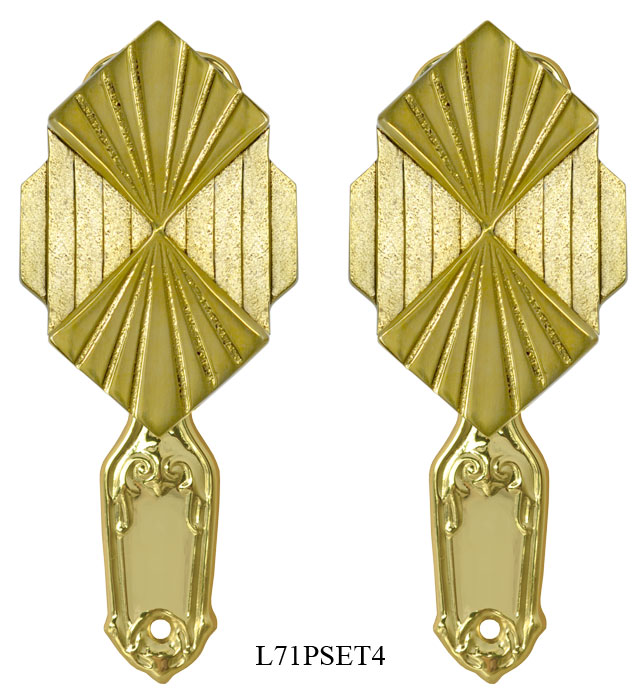

L71PSET4-PB Polished Unlacquered Brass Door Set {PICTURED}
L71PSET4-DK Antique Brass Finish Door Set
L71PSET4-OB Oil Rubbed Bronze Finish Door Set
This is an interior non-locking tubular passage set.
Each Set Includes:
-
Two Door Plates with "Knob Only" Function
-
Two Doorknobs with the Connecting Spindle
-
One Tubular Passage Latch with Catch
Measurements:
-
Doorplates: 4 ¾" tall x 1 ¼" wide.
-
Doorknobs: 1 ¾" wide by 2 ¼" tall; each projects 2 7⁄8".
-
Passage Latch:
-
Backset: 2 3⁄8"
-
Catch Plate: 1" x 2 ¾"
-
Latch can be installed by drilling a 7⁄8" hole, then recessing the wood for the 1" x 2 ¼" latch face.
Mounting screws are included for each piece of hardware in this set.
