L69MKKSET1-PB  Polished Unlacquered Brass Door Set with Narrow 1" Backset Mortise Lock

L69MKKSET1-DK  Antique Brass Finish Door Set with Narrow 1" Backset Mortise Lock

L69MKKSET1-OB  Oil Rubbed Bronze Finish Door Set with Narrow 1" Backset Mortise Lock

A lovely, very narrow backset door set.  Perfect for narrow stile doors with glass windows.

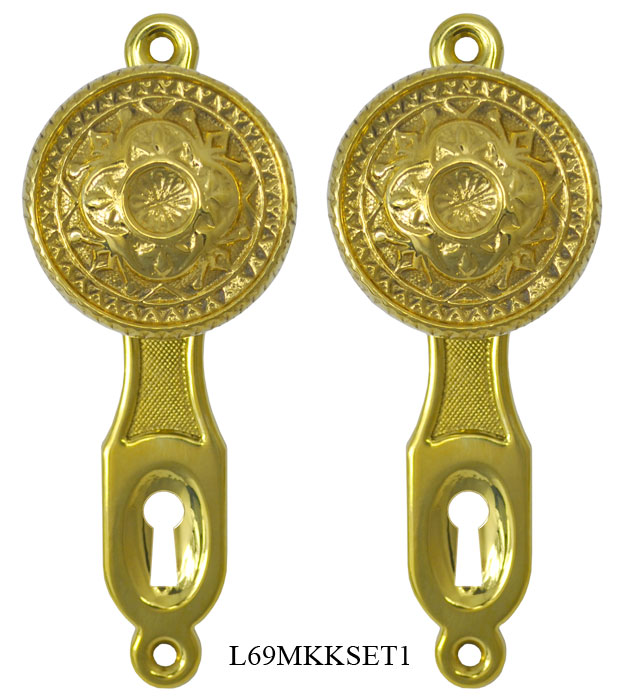

Very cute, wrought solid brass doorplates, paired with solid cast brass Victorian style doorknobs.

This is an interior mortise passage set which locks from both sides using a skeleton key.

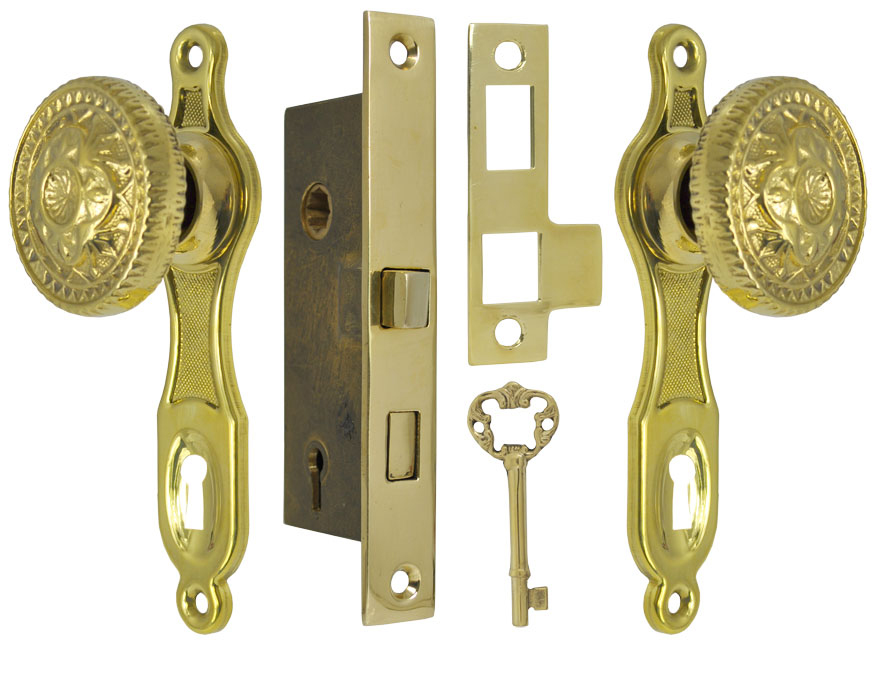

Each Set Includes:

• 2 Doorplates with Knob & Keyhole Function
• 2 Doorknobs with the Connecting Spindle
• 1 Mortise Lock with 1 Skeleton Key

Measurements:

• Doorplates:  1 ¼" wide x 5" tall.
• Doorknobs:  2" diameter; each projects 1 ½".
• Mortise Lock:
  • Lock Body:  4" tall x 1 ½" wide x ½" thick.
  • Faceplate:  5 ¼" tall x ¾" wide x ¹⁄₈" thick.
  • Strike Plate:  3" tall x ¾" wide, minus the tongue.
    The strike plate tongue measures ½" wide x ¾" tall.
  • Distance from the center of the doorknob receiver to the center of the round keyhole bit is 2 ¼".

Mounting screws are included with the hardware for this set.
