L63MTSET-PB1  Polished Unlacquered Brass Door Set with 2 ¼" Backset Mortise Lock
L63MTSET-PB2  Polished Unlacquered Brass Door Set with 2 ⁵⁄₈" Backset Mortise Lock

L63MTSET-DK1  Antique Brass Finish Door Set with 2 ¼" Backset Mortise Lock
L63MTSET-DK2  Antique Brass Finish Door Set with 2 ⁵⁄₈" Backset Mortise Lock

L63MTSET-OB1  Oil Rubbed Bronze Finish Door Set with 2 ¼" Backset Mortise Lock
L63MTSET-OB2  Oil Rubbed Bronze Finish Door Set with 2 ⁵⁄₈" Backset Mortise Lock

This lovely Art Nouveau Series is all solid cast brass.  Art Nouveau was popular from the late 1800's through the Edwardian times in the early 1900's.  Graceful, flowing lines that highlighted the beauty of nature distinguish the style.

This Interior Mortise Privacy Set locks from one side using a turnlatch.

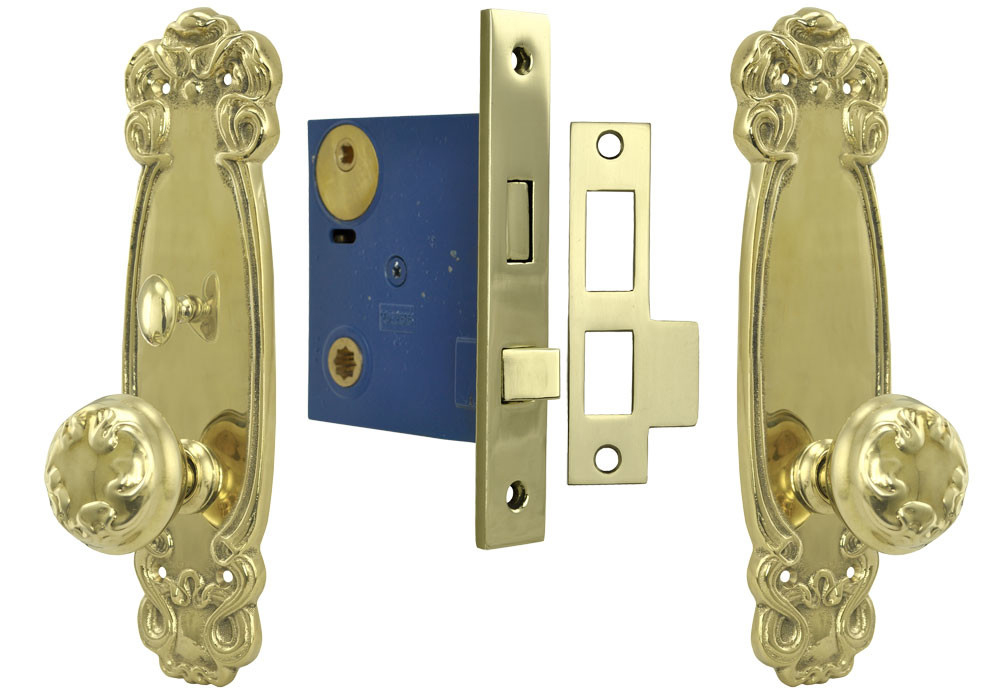

Each Set Includes:

• 1 Door Plate with Lower Doorknob Only Function
• 1 Door Plate with Lower Doorknob & Turnlatch Function
• 2 Doorknobs with the Connecting Spindle
• 1 Mortise Lock with Turnlatch Function (choice of 2 ¼" or 2 ⁵⁄₈" backset)

Measurements:

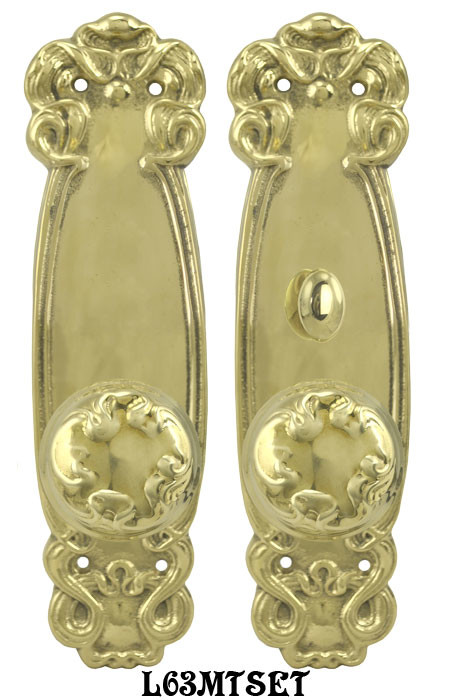

• Doorplates:  2 ¾" wide x 10" tall.
• Doorknobs:  2 ¼" diameter; 2 ¼" projection.
• Mortise Locks:
  • 2 ¼" Backset Lock:
    • Lock Body:  3 ¾" tall x 2 ⁷⁄₈" deep x ⁵⁄₈" thick.
    • Faceplate:  1" wide x 6" tall; ³⁄₁₆" thick.
    • Strike Plate:  4 ½" tall x 1" wide (plus tongue).
    • Distance from the center of the turnlatch receiver to the center of the doorknob spindle hub is 2 ½".
  • 2 ⁵⁄₈" Backset Lock:
    • Lock Body:  3 ¾" tall x 3 ³⁄₁₆" deep, and ⁵⁄₈" thick.
    • Faceplate:  1" wide x 6" tall; ³⁄₁₆" thick.
    • Strike Plate:  4 ½" tall x 1" wide (plus tongue).
    • Distance from the center of the turnlatch receiver to the center of the doorknob spindle hub is 2 ½".

Mounting screws are included for each piece of hardware in this set.
