L63DBS1 Art Nouveau Double Door Entry Set
This lovely Art Nouveau Series is all solid cast brass. Art Nouveau was popular from the late 1800's through Edwardian times of the early 1900's. Graceful, flowing lines that highlighted the beauty of nature distinguish the style.
This is an Exterior Entry with Cylinder Lock set.

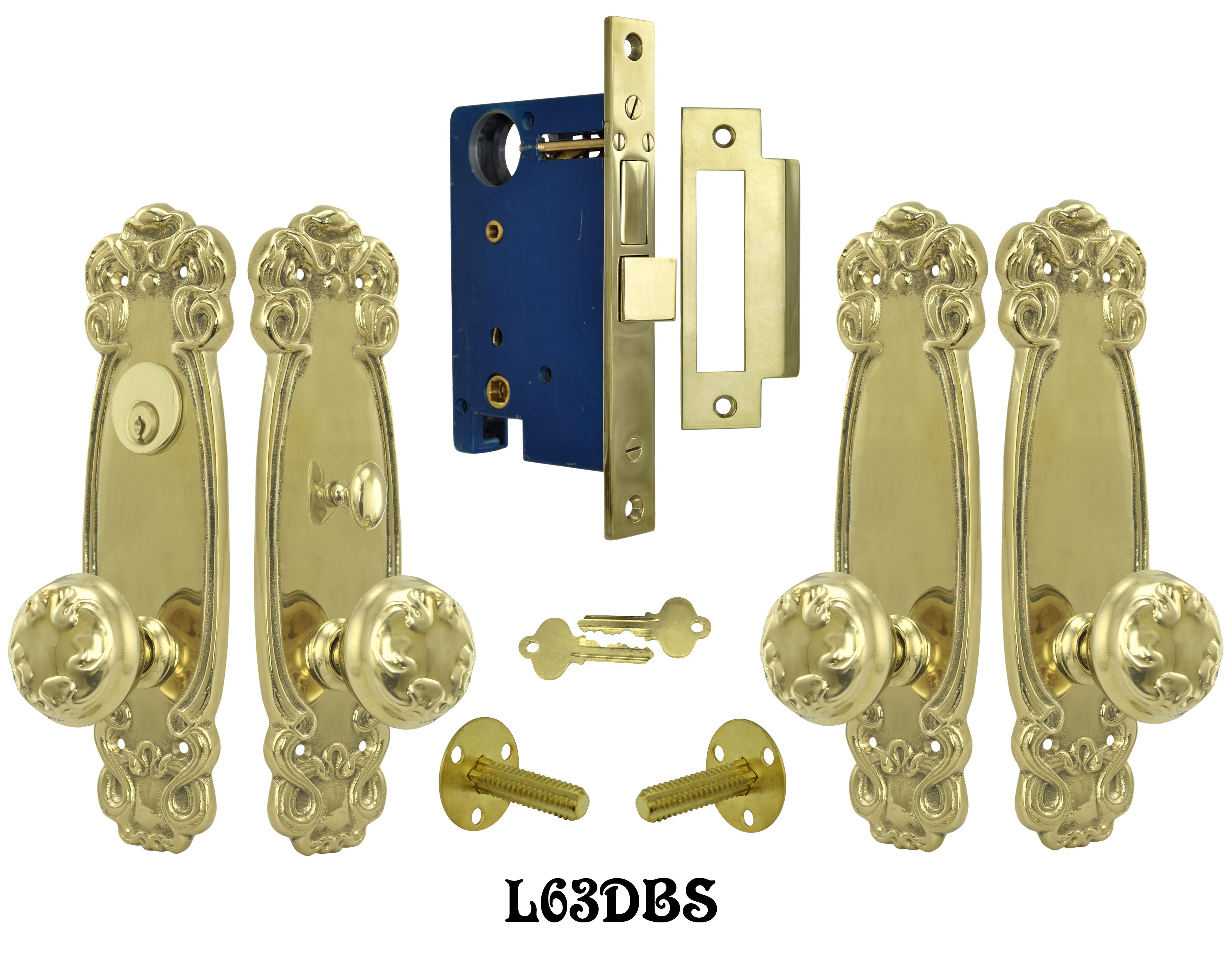

The complete door set includes:
-
Interior Door Plate
-
Exterior Door Plate
-
Two Knob Only Door Plates
-
Two Dummy Spindles
-
Mortise Lock with connecting spindle
-
Four Doorknobs
-
Cylinder Lock: See our Lock Cylinder Size Chart to select the correct cylinder length for your door.
Measurements:
Door Plates: 2 3/4" wide by 10" tall.
PLock body measures 5 1/2" tall by 3 5/8" deep. 13/16" thickness.
Lock face is 1" wide by 7 1/2" long.
Backset is 2 1/2", including the thickness of the face plate.
Distance from the center of the bolt throw hole to the center of the door knob spindle hole is 2 1/2".
Catch plate is 4 7/8" long by 1 7/8".
