Scroll Design Rosettes with Classic Round Doorknobs
Tubular Passage Door Set with 2 3⁄8" Backset

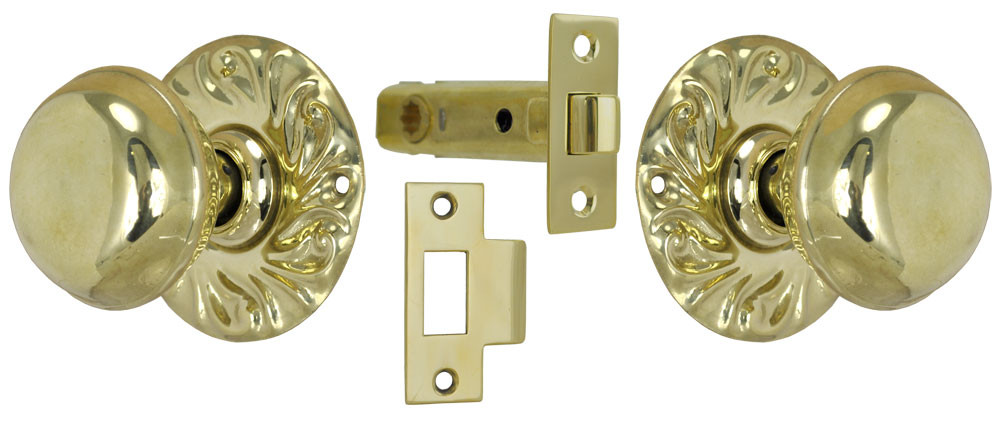

L5APSET1 Polished Unlacquered Brass Scroll Design Rosette Tubular Door Set {PICTURED}
LDK5APSET1 Antique Brass Finish Scroll Design Rosette Tubular Door Set
LOB5APSET1 Oil Rubbed Brass Finish Scroll Design Rosette Tubular Door Set
Scroll design rosettes, wrought in solid brass, joined with a pair of our round, wrought brass doorknobs.
This set is a non-locking interior passage set that comes with a tubular door latch.
Available in Polished Unlacquered Brass {Pictured}, Antique Brass Finish, or our matte black Oil Rubbed Bronze Finish.
The Set Includes:
-
Two Rosettes
-
Two Doorknobs with the Connecting Spindle
-
One Tubular Passage Latch
Measurements:
-
Rosettes: 3" diameter.
-
Doorknobs: 2 ¼" diameter. Each projects 2 ¼".
-
Passage Latch:
-
Face Plate: 1" wide x 2 ¼" tall.
-
Backset: 2 3⁄8"
-
Catch Plate: 1" wide x 2 ¾" tall.
-
Latch can be installed by drilling a 7/8" hole, then recessing the wood for the latch face.
Mounting screws are included with all pieces of hardware in this set.
* Modern Door Fit Up Kit: This item changes the modern ugly round holes in doors so that antique hardware can be used. This adapter plate will work with our L-6 tubular passage latch. Door must be a minimum of 1 1/8" thick. Plastic sleeve slides over the latch body, and is held in position by screwing metal halves together.
