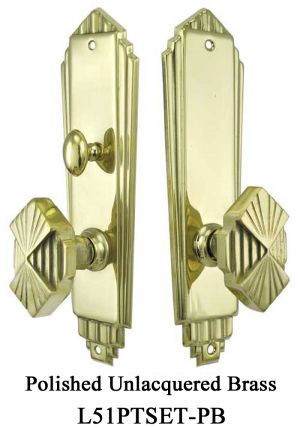

L51PTSET-PB  Polished Unlacquered Brass Art Deco Style Interior Privacy Doorset with Tubular Latch and Deadbolt

L51PTSET-DK  Antique Brass Finish Art Deco Style Interior Privacy Doorset with Tubular Latch and Deadbolt

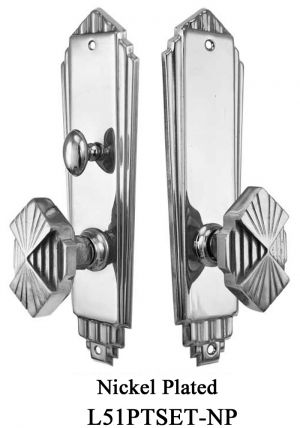

L51PTSET-NP  Nickel Plated Art Deco Style Interior Privacy Doorset with Tubular Latch and Deadbolt

Great Art Deco style interior privacy door set.

Available in Polished Unlacquered Brass, Antique Brass Finish, or Nickel Plated.

This is an interior locking privacy door set.

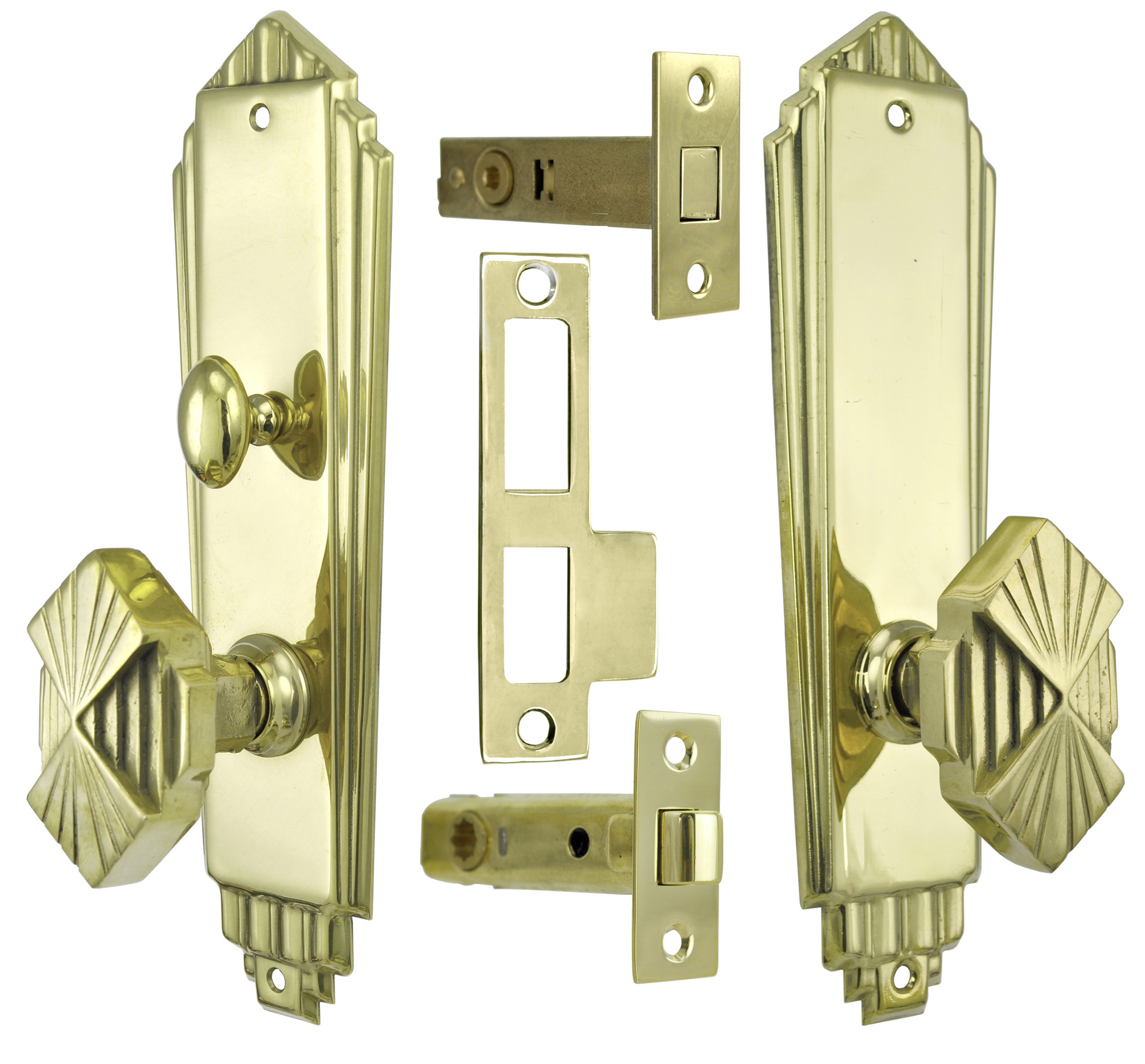

The Complete Set Includes:

• One Doorplate with Lower Knob Only Function
• One Doorplate with Turnlatch Function
• Two Doorknobs with the Connecting Spindle
• One Tubular Passage Latch with Matching Finish
• One Tubular Deadbolt with Matching Finish
• One Catchplate for Both Deadbolt and Passage Latch

Measurements:

• Doorplates:  9" tall by 2 ⁵⁄₈" wide.
• Doorknobs:  2 ¼" tall x 1 ¾" wide; each projects 2 ⁷⁄₈".
• Passage Latch:
  • Backset:  2 ³⁄₈"
  • Latch can be installed by drilling a ⁷⁄₈" hole, then recessing the wood for the 1"x 2 ¼" latch face.
• Deadbolt:
  • Backset:  2 ³⁄₈"
  • Case:  3 ¼" long x ¹³⁄₁₆" tall x ⁹⁄₁₆" deep.
  • Backset:  2 ³⁄₈"
  • Deadbolt Face:  2 ¼" x 1 ¹⁄₁₆"
• Catchplate:
  • 4 1/₂" x 1"

Mounting screws are included with each set.
