L51DBS Polished Brass Art Deco Double Door Entry Set
L51DBS Antique Brass Art Deco Double Door Entry Set
L51DBS Nickel Art Deco Double Door Entry Set
Great Art Deco Door set. Comes in a Polished Brass Antique Brass and Nickel Plated Brass.

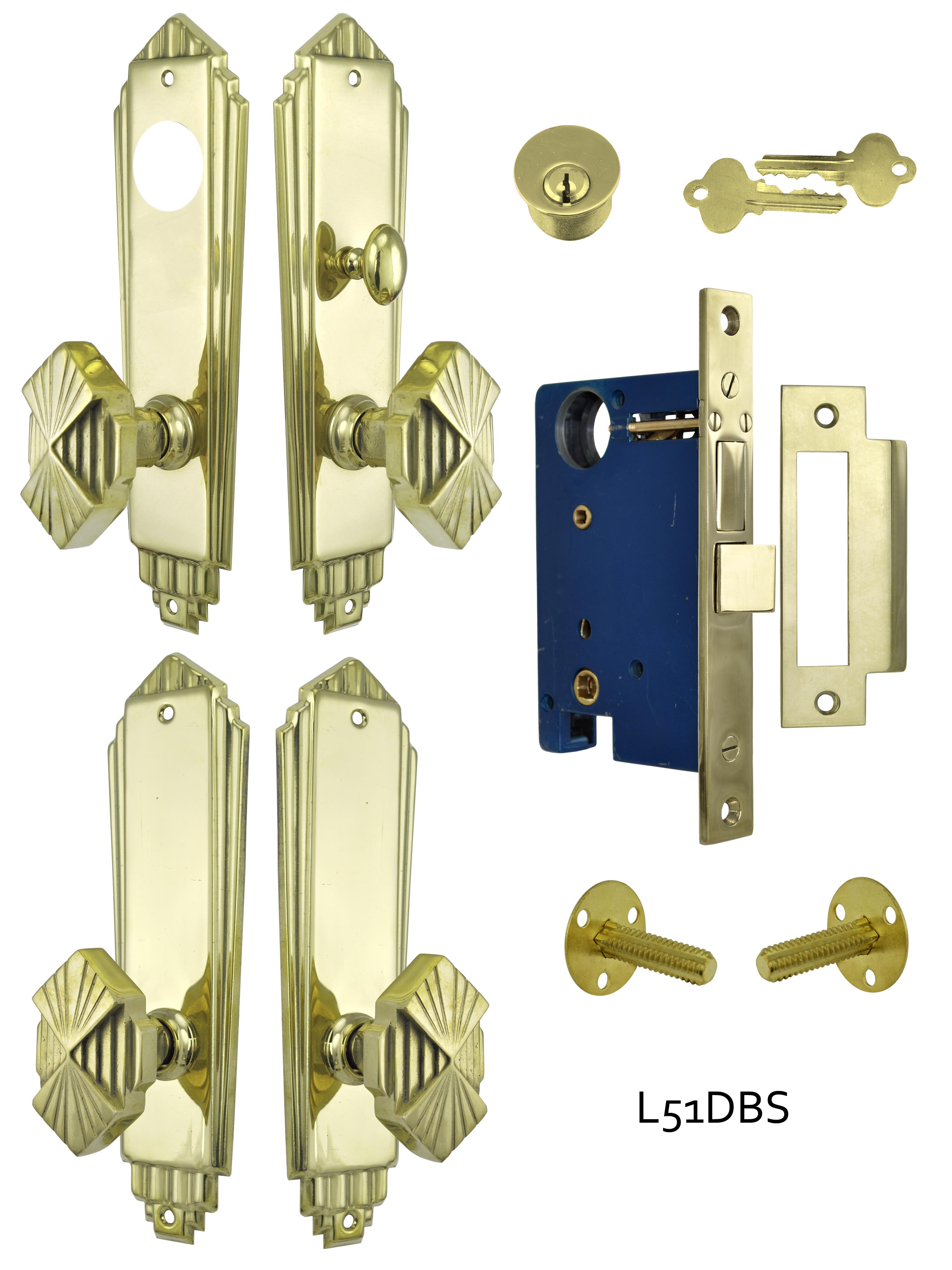

The complete door set includes:
-
Interior Door Plate
-
Exterior Door Plate
-
Mortise Lock with connecting spindle
-
Four Doorknobs
-
Two Knob Only Door Plates
-
Two Dummy Spindles
-
Cylinder Lock: See our Lock Cylinder Size Chart to select the correct cylinder length for your door.
Door Plate: 9" tall by 2 5/8" wide.
Measurement from the center of the cylinder hole to the center of the doorknob spindle hole is 3 3/4".
Lock body measures 5 1/2" tall by 3 5/8" deep. 13/16" thickness.
Lock face is 1" wide by 7 1/2" long.
Backset is 2 1/2", including the thickness of the face plate.
Distance from the center of the bolt throw hole to the center of the door knob spindle hole is 2 1/2".
Catch plate is 4 7/8" long by 1 7/8".
