L28DBS-PB  Polished Unlacquered Brass Palladian Double Door Plate Entry Set

L28DBS-DK  Antique Brass Finish Palladian Double Door Plate Entry Set

L28DBS-OB  Oil Rubbed Bronze Finish Palladian Double Door Plate Entry Set

Photos don't do this magnificent entry plate justice. Finely detailed beadwork, plus a scallop-shell top design, executed in lost-wax cast brass.

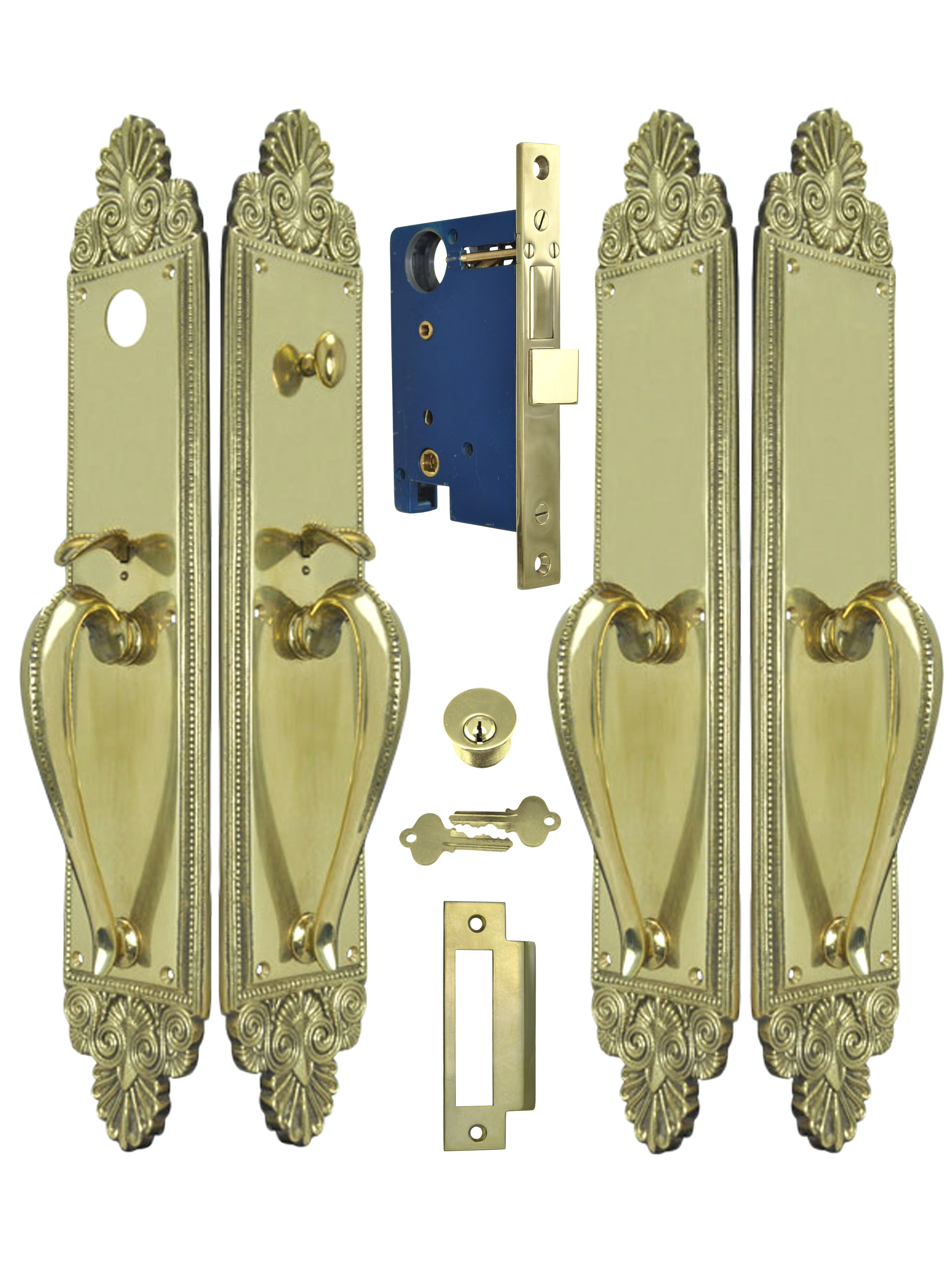

The complete double door set includes all pictured hardware:

1. Interior Door Plate
2. Exterior Door Plate
3. Interior Dummy Door Plate
4. Exterior Dummy Door Plate
5. Mortise Lock
6. Cylinder Lock.


   See our Lock Cylinder Size Chart to select the correct cylinder length for your door.

Doorplate Measurements:

• 4" wide by 21 ¹⁄₈" long.
• The distance from the center of the cylinder receiver to the thumb latch stem is 4 ¾".

Mortise Lock Measurements:

• Body measures 5 ½" tall by 3 ⁵⁄₈" deep. ¹³⁄₁₆" thickness.
• Lock face is 1" wide by 7 ½" long.
• Backset is 2 ½", including the thickness of the face plate.
• Distance from the center of the bolt throw hole to the center of the door knob spindle hole is 2 ½".
• Catch plate is 4 ⁷⁄₈" long by 1 ⁷⁄₈".
