Victorian Heraldic Door Plate and Large Lion Knob Set
with Privacy Turnlatch Mortise
L26MTSET1-DK1 Antique Brass Finish with 2 ¼" Backset Mortise Lock
L26MTSET1-DK2 Antique Brass Finish with 2 5⁄8" Backset Mortise Lock
L26MTSET1-OB1 Oil Rubbed Bronze Finish with 2 ¼" Backset Mortise Lock
L26MTSET1-OB2 Oil Rubbed Bronze Finish with 2 5⁄8" Backset Mortise Lock

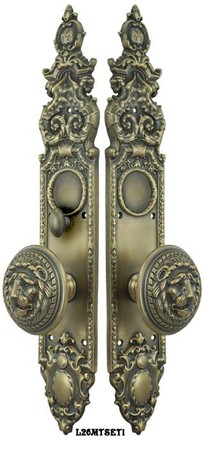

Victorian style Heraldic door plates, cast in solid brass, and paired with our reproduction of Schlage's VERY large and impressive lion head door knobs.
This complete door set is hand finished in a choice of our Antique Brass Finish (pictured) or our matte black Oil Rubbed Bronze Finish.
The interior mortise privacy set locks from one side only using a turnlatch operator.
The Complete Set Includes:
-
One Door Plate with Doorknob & Turnlatch Function
-
One Door Plate with Lower Doorknob Only Function
-
Two Doorknobs with the Connecting Spindle
-
One Mortise Lock with Turnlatch Function (choice of 2 ¼" or 2 5⁄8" backset)
Measurements:
-
Door Plates: 3 1⁄8" wide x 17" tall.
-
Doorknobs: 3 3⁄8" in diameter; each project 2 7⁄8"; they weigh in at about 1 ½ pounds.
-
Mortise Locks:
-
2 ¼" Backset Lock:
-
Lock Body: 3 ¾" tall x 2 7⁄8" deep x 5⁄8" thick.
-
Faceplate: 1" wide x 6" tall; 3⁄16" thick.
-
Strike Plate: 4 ½" tall x 1" wide (plus tongue).
-
Distance from the center of the turnlatch receiver to the center of the doorknob spindle hub is 2 ½".
-
2 5⁄8" Backset Lock:
-
Lock Body: 3 ¾" tall x 3 3⁄16" deep, and 5⁄8" thick.
-
Faceplate: 1" wide x 6" tall; 3⁄16" thick.
-
Strike Plate: 4 ½" tall x 1" wide (plus tongue).
-
Distance from the center of the turnlatch receiver to the center of the doorknob spindle hub is 2 ½".
Mounting screws for all hardware will be supplied.
