L19MTSET1-PB1  Polished Unlacquered Brass Door Set with 2 ¼" Backset Mortise Lock
L19MTSET1-PB2  Polished Unlacquered Brass Door Set with 2 ⁵⁄₈" Backset Mortise Lock

L19MTSET1-DK1  Antique Brass Finish Door Set with 2 ¼" Backset Mortise Lock
L19MTSET1-DK2  Antique Brass Finish Door Set with 2 ⁵⁄₈" Backset Mortise Lock

L19MTSET1-OB1  Oil Rubbed Bronze Finish Door Set with 2 ¼" Backset Mortise Lock
L19MTSET1-OB2  Oil Rubbed Bronze Finish Door Set with 2 ⁵⁄₈" Backset Mortise Lock

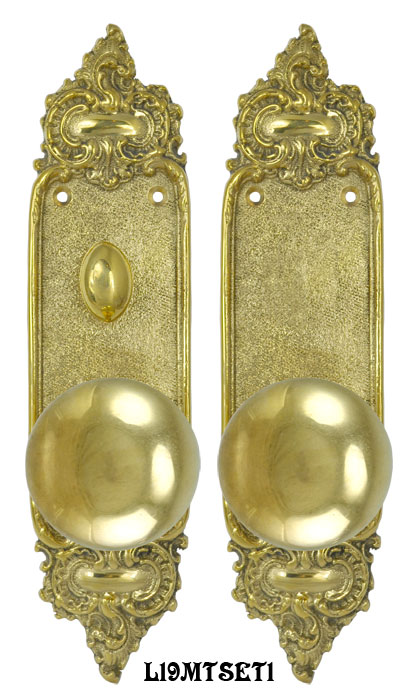

Lovely French Louis design door set.  Solid yellow brass, with fine details retained through lost wax casting.

The complete door set is available in Polished Unlacquered Brass (which will develop a natural patina over time, just like the original Victorian hardware), or our hand-finished, mellow brown, Antique Brass Finish (pictured).  Also available in our matte black Oil Rubbed Bronze Finish.

This Interior Mortise Privacy Set locks from one side using a turnlatch.

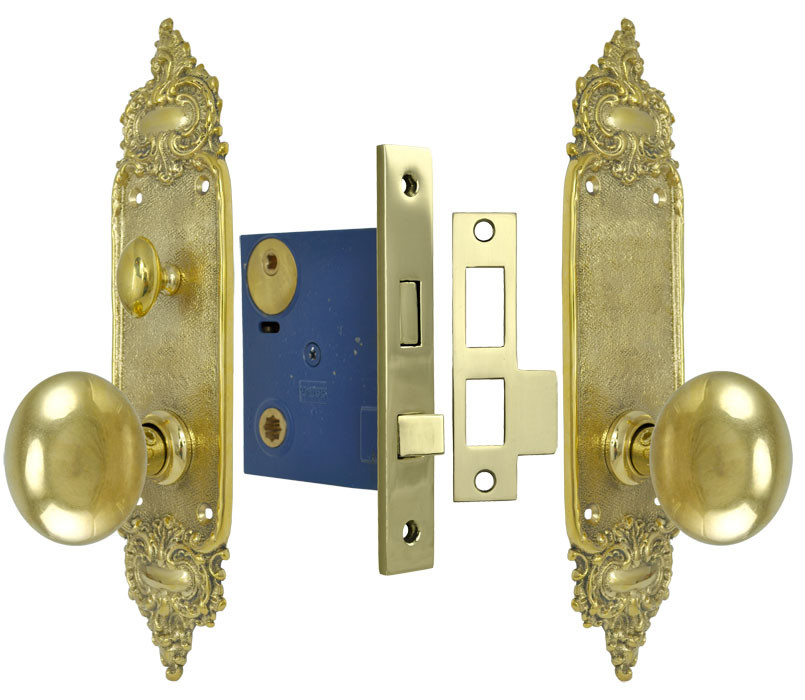

Each Set Includes:

• 1 Door Plate with Lower Doorknob Only Function
• 1 Door Plate with Lower Doorknob & Turnlatch Function
• 2 Doorknobs with the Connecting Spindle
• 1 Mortise Lock with Turnlatch Function (choice of 2 ¼" or 2 ⁵⁄₈" backset)

Measurements:

• Door Plates:  2 ½" wide x 9 ¾" tall.
• Doorknobs:  2 ¼" diameter; each projects 2 ¼".
• Mortise Locks:
  • 2 ¼" Backset Lock:
    • Lock Body:  3 ¾" tall x 2 ⁷⁄₈" deep x ⁵⁄₈" thick.
    • Faceplate:  1" wide x 6" tall; ³⁄₁₆" thick.
    • Strike Plate:  4 ½" tall x 1" wide (plus tongue).
    • Distance from the center of the turnlatch receiver to the center of the doorknob spindle hub is 2 ½".
  • 2 ⁵⁄₈" Backset Lock:
    • Lock Body:  3 ¾" tall x 3 ³⁄₁₆" deep, and ⁵⁄₈" thick.
    • Faceplate:  1" wide x 6" tall; ³⁄₁₆" thick.
    • Strike Plate:  4 ½" tall x 1" wide (plus tongue).
    • Distance from the center of the turnlatch receiver to the center of the doorknob spindle hub is 2 ½".

Mounting screws for all hardware will be supplied.
