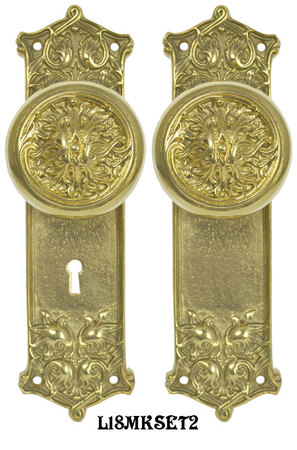

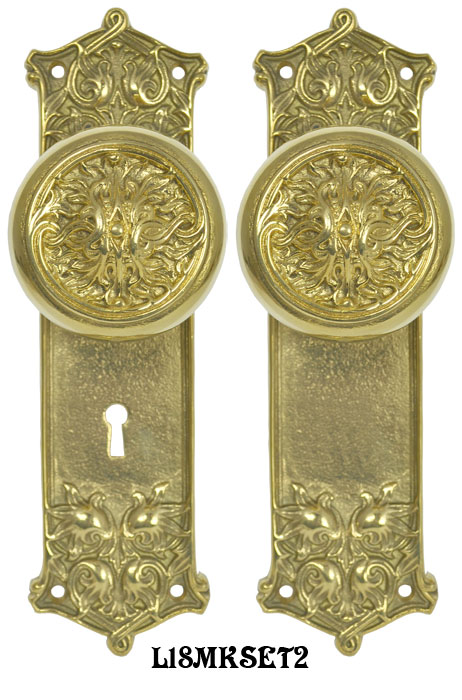

Victorian Scroll Pattern Privacy Set with Fancy Scroll Design Doorknobs
& Locking Keyed Mortise - Keyhole Function On One Side Only
L18MKSET2-PB1 Polished Unlacquered Brass Door Set with 2 ¼" Backset Mortise Lock
L18MKSET2-PB2 Polished Unlacquered Brass Door Set with 2 5⁄8" Backset Mortise Lock
L18MKSET2-DK1 Antique Brass Finish Door Set with 2 ¼" Backset Mortise Lock
L18MKSET2-DK2 Antique Brass Finish Door Set with 2 5⁄8" Backset Mortise Lock
L18MKSET2-OB1 Oil Rubbed Bronze Finish Door Set with 2 ¼" Backset Mortise Lock
L18MKSET2-OB2 Oil Rubbed Bronze Finish Door Set with 2 5⁄8" Backset Mortise Lock
A beautifully detailed Victorian Scroll Pattern Set, cast in solid brass.
This is an interior mortise privacy set which locks from one side only using a skeleton key.

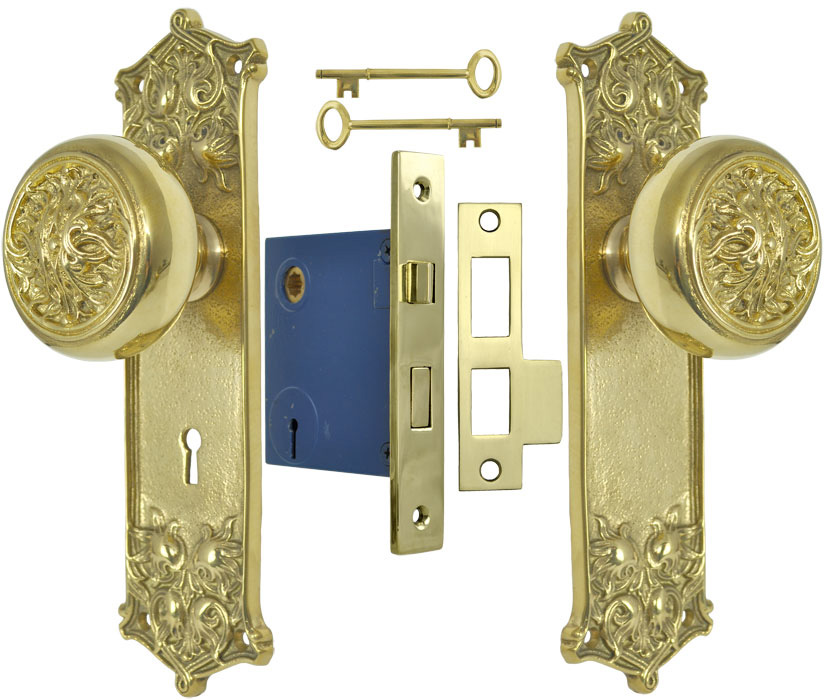

Each Set Includes:
-
1 Doorplates with Knob & Keyhole Function
-
1 Doorplate with Knob Only Function
-
2 Doorknobs with the Connecting Spindle
-
1 Mortise Lock with 2 Skeleton Keys (choice of 2 ¼" or 2 5⁄8" backset)
Measurements:
-
Doorplates: 2 3⁄8" wide x 8 ½" tall.
-
Doorknobs: 2 ¼" diameter; projects 2 ¼".
-
Mortise Locks:
-
2 ¼" Backset Lock:
-
Lock Body: 3 ¾" tall x 2 7⁄8" deep x 5⁄8" thick.
-
Faceplate: 1" wide x 6" tall; 3⁄16" thick.
-
Strike Plate: 4 ½" tall x 1" wide (plus tongue).
-
Distance from the center of the doorknob receiver to the center of the round keyhole bit is 2 ¼".
-
2 5⁄8" Backset Lock:
-
Lock Body: 3 ¾" tall x 3 3⁄16" deep, and 5⁄8" thick.
-
Faceplate: 1" wide x 6" tall; 3⁄16" thick.
-
Strike Plate: 4 ½" tall x 1" wide (plus tongue).
-
Distance from the center of the doorknob receiver to the center of the round keyhole bit is 2 ¼".
Mounting screws are included with each set.
