Interior Privacy Function Door Set - Victorian Rococo Yale Pattern with Turnlatch Mortise Lock
L15MTSET1-PB1 Polished Unlacquered Brass Door Set with 2 ¼" Backset Mortise Lock
L15MTSET1-PB2 Polished Unlacquered Brass Door Set with 2 5⁄8" Backset Mortise Lock
L15MTSET1-DK1 Antique Brass Finish Door Set with 2 ¼" Backset Mortise Lock
L15MTSET1-DK2 Antique Brass Finish Door Set with 2 5⁄8" Backset Mortise Lock
L15MTSET1-OB1 Oil Rubbed Bronze Finish Door Set with 2 ¼" Backset Mortise Lock
L15MTSET1-OB2 Oil Rubbed Bronze Finish Door Set with 2 5⁄8" Backset Mortise Lock
Beautiful Yale Pattern from the Rococo Revival Victorian era. Solid yellow brass, with fine details retained through lost wax casting.

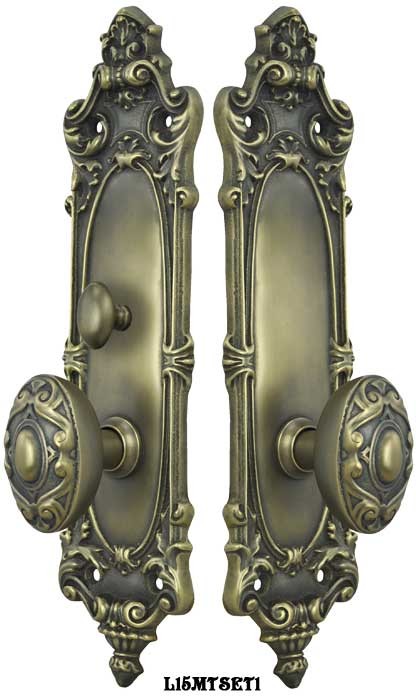

The complete door set is available in Polished Unlacquered Brass (which will develop a natural patina over time, just like the original Victorian hardware), or our hand-finished, mellow brown, Antique Brass Finish (pictured). Also available in our matte black Oil Rubbed Bronze Finish.
This Interior Mortise Privacy Set locks from one side using a turnlatch.

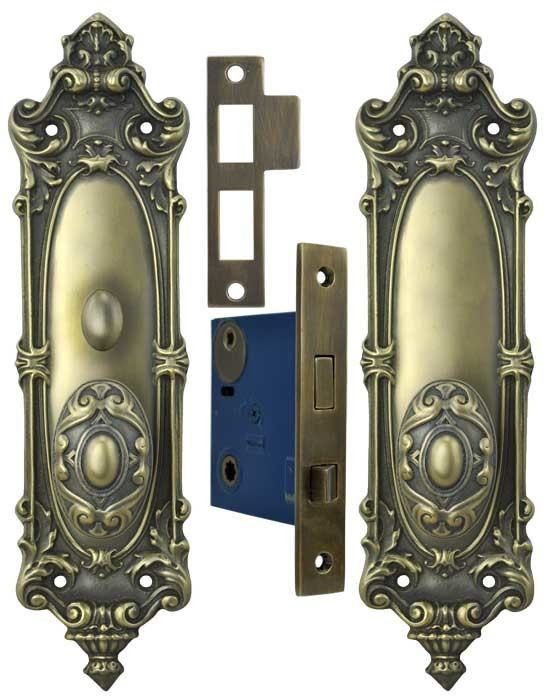

Each Set Includes:
-
1 Door Plate with Lower Doorknob Only Function
-
1 Door Plate with Lower Doorknob & Turnlatch Function
-
2 Doorknobs with the Connecting Spindle
-
1 Mortise Lock with Turnlatch Function (choice of 2 ¼" or 2 5⁄8" backset)
Measurements:
-
Door Plates: 3 3⁄8" wide by 12 ½" long.
-
Doorknobs: 2 ¾" x 1 ¾"; Projects 2 ¼".
-
Mortise Locks:
-
2 ¼" Backset Lock:
-
Lock Body: 3 ¾" tall x 2 7⁄8" deep x 5⁄8" thick.
-
Faceplate: 1" wide x 6" tall; 3⁄16" thick.
-
Strike Plate: 4 ½" tall x 1" wide (plus tongue).
-
Distance from the center of the turnlatch receiver to the center of the doorknob spindle hub is 2 ½".
-
2 5⁄8" Backset Lock:
-
Lock Body: 3 ¾" tall x 3 3⁄16" deep, and 5⁄8" thick.
-
Faceplate: 1" wide x 6" tall; 3⁄16" thick.
-
Strike Plate: 4 ½" tall x 1" wide (plus tongue).
-
Distance from the center of the turnlatch receiver to the center of the doorknob spindle hub is 2 ½".
Mounting screws for all hardware will be supplied.
A similar door set with tubular latch and privacy deadbolt is also available. Nice idea for bathrooms or bedrooms!
Mounting screws are included with each set.
