Victorian Double Door Entry Set Rococo Yale Pattern (L15DBS2)
Price:$734.20
Quantity:
Add to cart
Add to cart

Cylinder Length:
L-9CC 1" Cylinder
L-9C4 1 1/4" Cylinder
L-150S 1 1/2" Cylinder
L-175S 1 3/4" Cylinder
Set Door Handing
:
Right Hand

Left Hand
Finish:
Polished Brass
Antique Brass
Oil Rubbed Bronze
Victorian Double Door Entry Set Rococo Yale Pattern (L15DBS2)

Beautiful Yale Pattern of the Rococo Revival Victorian era.  Solid yellow brass with fine details retained through lost wax casting.

This complete door set is hand finished in our Antique Brass Finish.

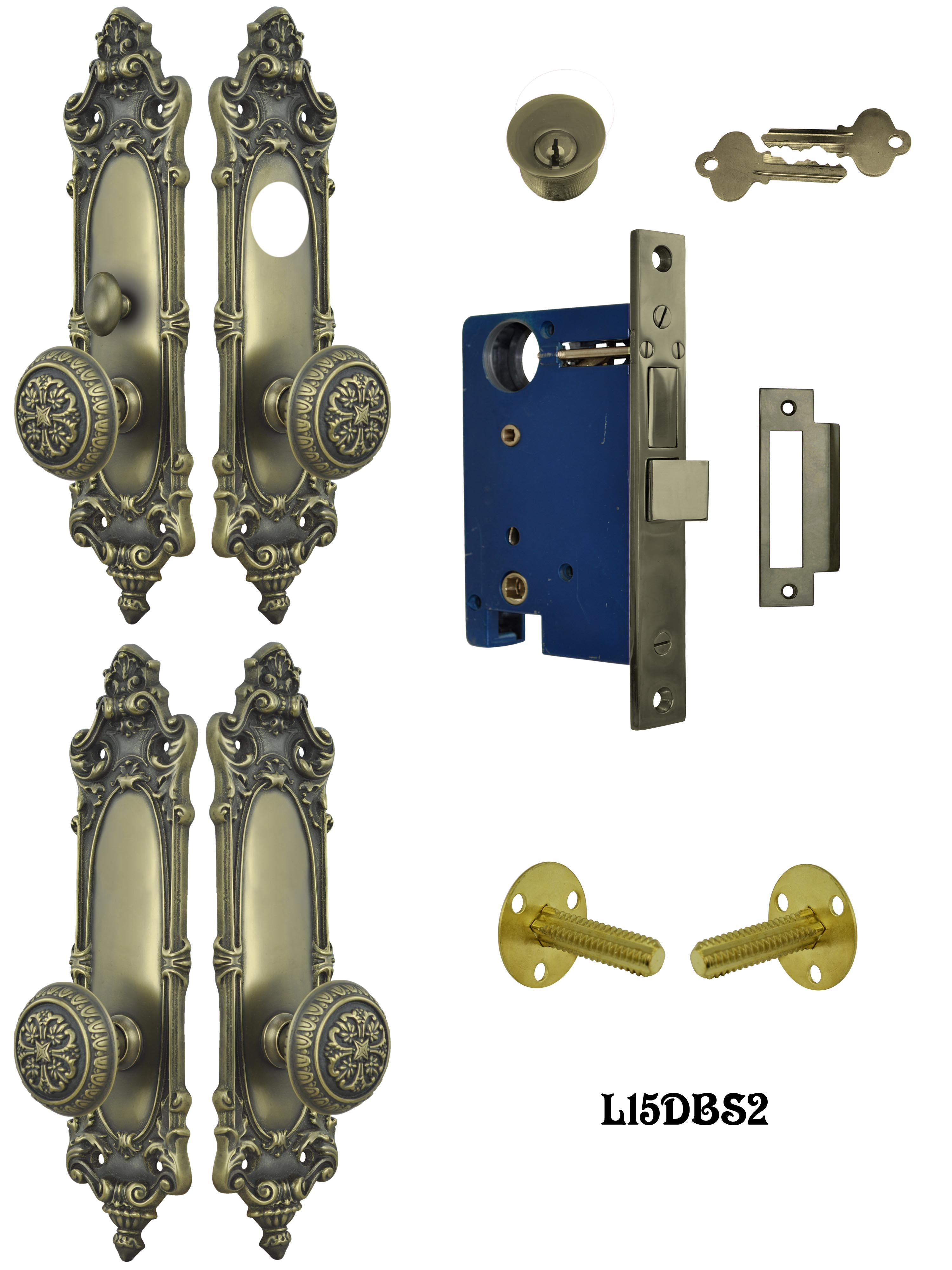

The complete door set includes:

1.  One Interior Door Plate with Turnlatch Function

2.  One Exterior Door Plate

3.  One Mortise Entry Lock with Connecting Spindle

4.  Two Knob Only Door Plates

5.  Four Doorknobs

6.  Two Dummy Spindles

7.  One Cylinder Lock. See our Lock Cylinder Size Chart to select the correct cylinder length for your door.

Measurements:

Door Plates:  3 3/8" wide by 12 1/2" long.

Doorknobs:  2 3/4" x 1 3/4".  Projects 2 1/4".

Lock body measures 5 1/2" tall by 3 5/8" deep.  13/16" thickness.

Lock face is 1" wide by 7 1/2" long.

Backset is 2 1/2", including the thickness of the face plate.

Distance from the center of the bolt throw hole to the center of the door knob spindle hole is 2 3/8".

Catch plate is 4 7/8" long by 1 7/8".
