L109DBS Antique Brass Finish Corbin Roanoke Passage Door Plate Set
Large Corbin's Roanoke door plate set. Finely wrought just like Corbin did in 1900's. The design is just so precise and attractive, that it takes a bit of study to see all the design elements crowded onto this plate.
This is an Exterior Entry with Cylinder Lock set.
This complete door set has been hand finished in our Antique Brass Finish.

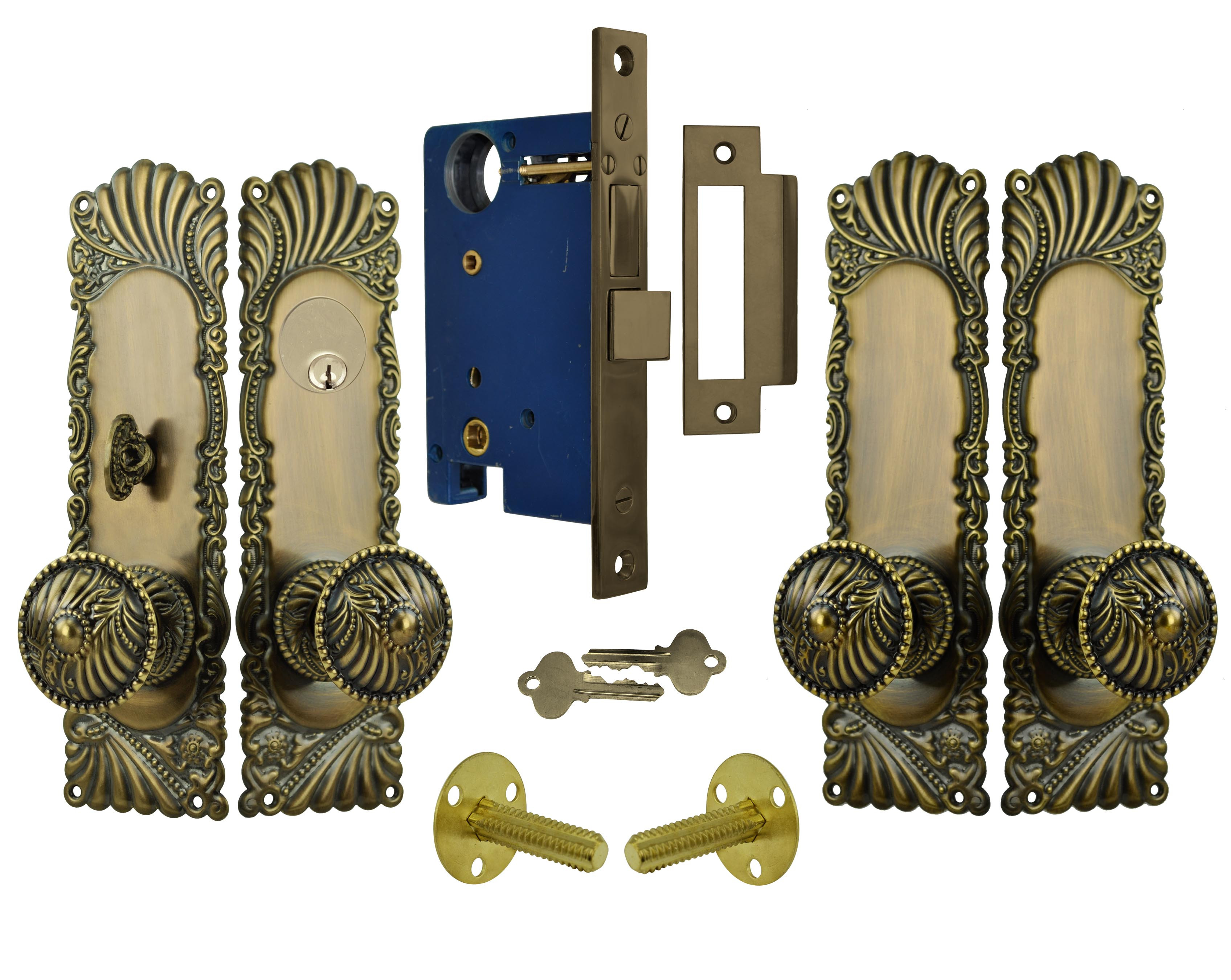

The complete door set includes:
-
Interior Door Plate
-
Exterior Door Plate
-
Two Lower Knob Door Plates
-
Two Dummy Spindles
-
Mortise Lock
-
Two Doorknobs with Connecting Spindle
-
Cylinder Lock: See our Lock Cylinder Size Chart to select the correct cylinder length for your door.
Measurements:
Door Plates: 2 3/4" wide by 10" tall.
Lock body measures 5 1/2" tall by 3 5/8" deep. 13/16" thickness.
Lock face is 1" wide by 7 1/2" long.
Backset is 2 1/2", including the thickness of the face plate.
Distance from the center of the bolt throw hole to the center of the door knob spindle hole is 2 3/8".
Catch plate is 4 7/8" long by 1 7/8".
Have a double door that needs a dummy set? Please see our related set below.
