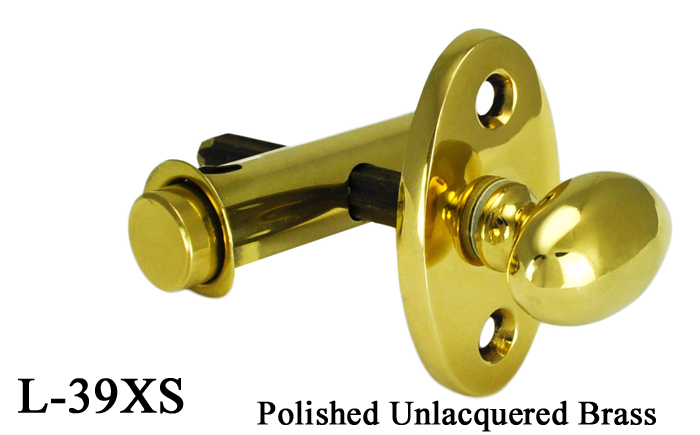

L-39XS  Polished Unlacquered Brass Very Short Deadbolt with ¾" Backset (Pictured)

L-DK39XS  Antique Brass Finish Very Short Deadbolt with ¾" Backset

L-OB39XS  Oil Rubbed Bronze Finish Very Short Deadbolt with ¾" Backset

For those with very narrow stiles, or doors with a lot of glass, we make an extra short deadbolt.

Measurements:

• Overall Barrel Length:  1 ½"
• Backset:  ¾"
• Barrel Diameter:  ⁹⁄₁₆"
• Bolt:  ½" diameter, with ½" throw.
• Strikeplate Dimensions:  1 ¾" tall x ⁷⁄₈" wide.
• Oval Backplate:  2" tall x 1 ¹⁄₈" wide.
• Knob Projection:  1"
