L-79L Polished Unlacquered Brass Narrow 1" Backset Skeleton Key Mortise Lock with 2 ¼" c/c

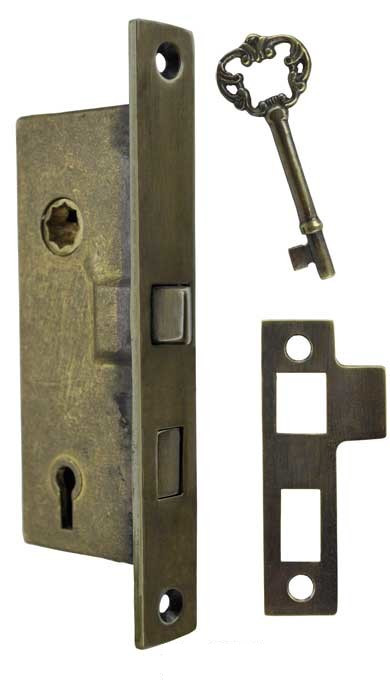

L-DK79L Antique Brass Finish Narrow 1" Backset Skeleton Key Mortise Lock with 2 ¼" c/c {Pictured}
L-OB79L Oil Rubbed Bronze Finish Narrow 1" Backset Skeleton Key Mortise Lock with 2 ¼" c/c
Reproduction of a very rare narrow, 1" backset lock. Solid brass, precision cast lock. If your door is mostly glass, this might work for you.
Solid brass key included.

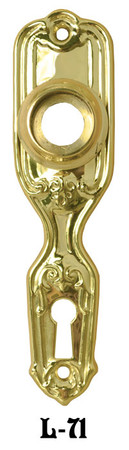

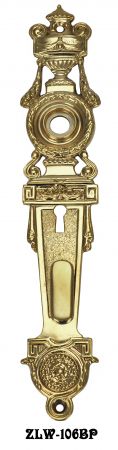

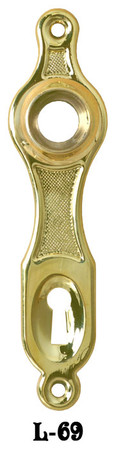

Works well with narrow back plates: L-49, L-69, L-71, ZLW-249, or ZLW-106BP.
Lock Measurements:
-
Case Measurements: 4" tall x 1 ½" wide.
-
Backset: 1"
-
Center to Center: 2 ¼", measured from the center of the doorknob hole to the center of the round key bit.
-
Lock Face: 5 ¼" tall by ¾" wide.
-
Catch plate: 3" tall x ¾" wide, less the tongue.
-
Latch: ½" x ½", with a projection of 3⁄8". Fully reversible for left & right hand doors.
-
Deadbolt: 9⁄16" tall x 5⁄16" wide. It has a ¼" throw.
