L-1314 Solid Brass Full Door Cremone Bolt Single Door Set
This lovely device is what we selected for the doors leading from our showroom to the offices. Make a statement of elegance by using a cremone bolt for your exterior or library doors.

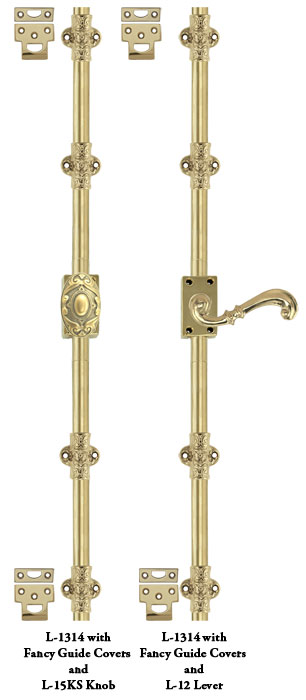

This cremone bolt set can come by itself without any knobs, for use with an antique knob or knob or your choice. We also offer it with a french knob or lever. The set can come with or without the decorative guides; please indicate your preference by selecting the appropriate option above.
The Door set (as is) only operates from one side of the door. If you wish to have it function from both sides, you will need to purchase a full length spindle, a knob and a face plate such as L-S5, L-19LK(or L-146R) and ZLW-20K for the other side of the door.
We also offer an even more decorative bolt, as part number ZLW-1FECB.
Measurements:
-
The operator case is 1 ¾" wide by 6" long.
-
Upper Rod: 51" long x 11⁄16" wide x 5⁄16" thick.
-
Lower Rod: 39" long x 11⁄16" wide x 5⁄16" thick.
The guides for the rods are all ball bearing, with spring tension for smooth activation. These guides protrude from each side of the rod by 7⁄16", and are 5⁄8" wide. The guides and rods are both extruded solid brass.
This cremone bolt set will fit doors of any length up to 96" tall. For shorter doors, simply trim the top and bottom rods by an equal amount.
Changing the Handing: Click here to view (or to download, Right-click and "Save As..") detailed instructions for changing the handing of the operator.
For taller doors, we make an extra rod (part number L-1314M) which is 7 foot long, and can be used either on the top or the bottom of a door, depending on where you want the handle. This rod is packaged complete with four guides. This is an accessory rod; it does not substitute for our L-1314 set.
