106KPSET-PB Polished Unlacquered Cast Brass Round Knob Passage Door Set
106KPSET-DK Antique Brass Finish Cast Brass Round Knob Passage Door Set
106KPSET-OB Oil Rubbed Bronze Finish Cast Brass Round Knob Passage Door Set
The solid brass doorknobs in this set are actually a one piece "unit" with the rosette. This is seen in many European doorknob sets. The set uses a steel shaft, with no threads. Supplied with our
2 3⁄8" backset passage latch.
This is an interior non-locking passage set.

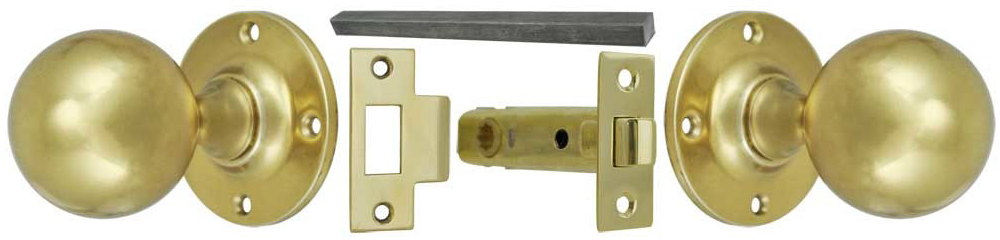

The Set Includes:
-

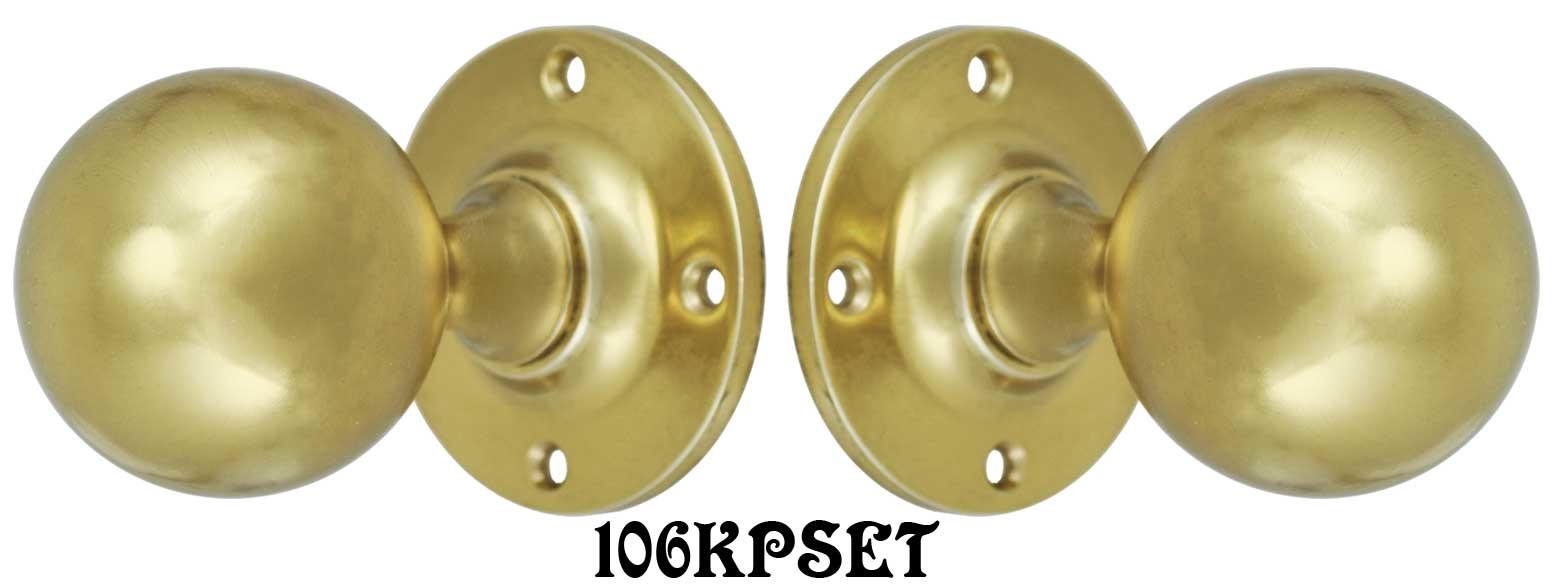

Two doorknobs with Attached Rosettes
-
One Steel Doorknob Spindle
-
One Tubular Passage Latch
Measurements:
-
Doorknobs: 1 ¾" diameter; each projects 3".
-
Rosette: 2 3⁄16", installed using four screws.
-
Tubular Passage Latch:
-
Backset: 2 3⁄8"
-
Latch Face: 1" wide x 2 ¼" tall.
-
Catch Plate: 1" wide x 2 ¾" tall.
-
Installation: Latch can be installed by drilling a 7/8" hole, then recessing the wood for the latch face.
Mounting screws are included with the hardware for this set.
